Repair Procedures: Removal

  1. Disconnect the battery negative terminal.

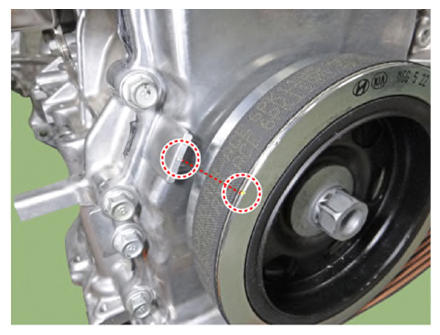

  2. Turn the crankshaft damper pulley clockwise, and align its groove with the timing mark of the timing chain cover.
    G13412090Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the timing chain cover.

    (Refer to Timing System - "TIMING CHAIN COVER ")

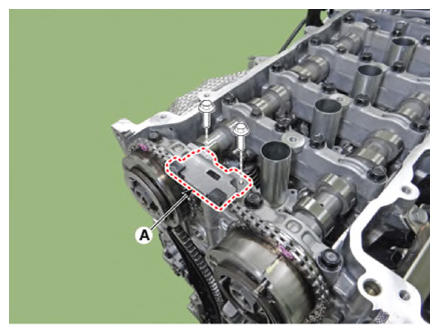

  4. Remove the cam to cam guide (A).
    G13412091Courtesy of KIA MOTORS AMERICA, INC.

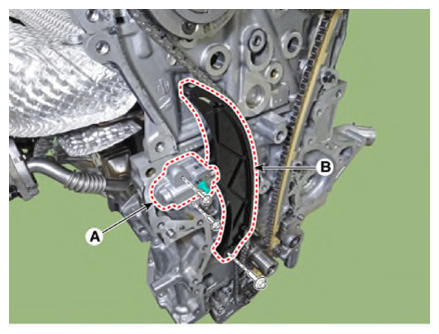

  5. Remove the timing chain tensioner (A) and then remove the timing chain tensioner arm (B).
    G13412092Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Before the removal of timing chain tensioner, compress tensioner piston then remove the tensioner after fixing with fixing pin (A).
    G13412093Courtesy of KIA MOTORS AMERICA, INC.

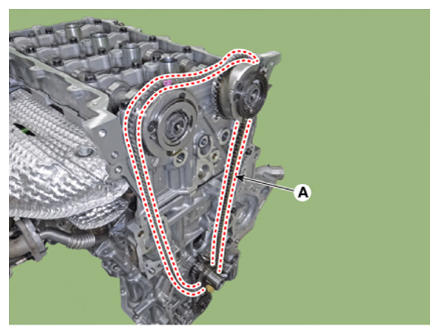

  6. Remove the timing chain (A).
    G13412094Courtesy of KIA MOTORS AMERICA, INC.

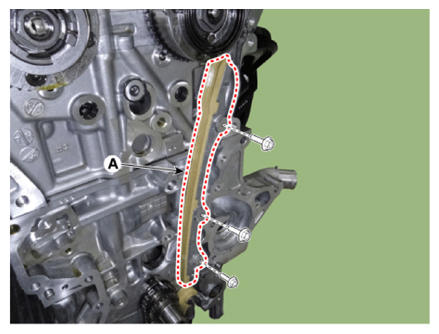

  7. Remove the timing chain guide (A).
    G13412095Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the oil pump chain.

    (Refer to Lubrication System - "OIL PUMP ")

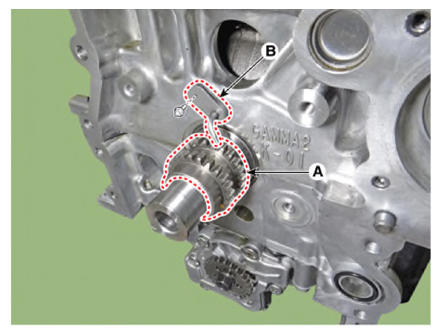

  9. Remove the crankshaft sprocket (A) and timing chain oil jet (B).
G13412096Courtesy of KIA MOTORS AMERICA, INC.
