Repair Procedures: Removal

Disconnect the negative battery terminal.

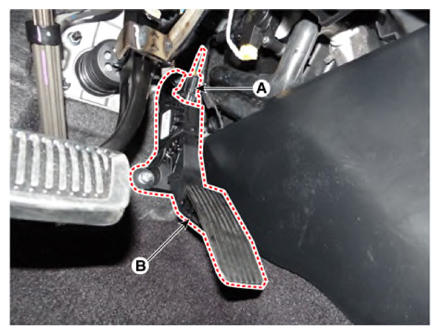

Disconnect the accelerator position sensor (APS) connector (A).
Remove the accelerator pedal module (B) after loosening the mounting nuts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
