Removal And Installation

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Tightening torque:

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

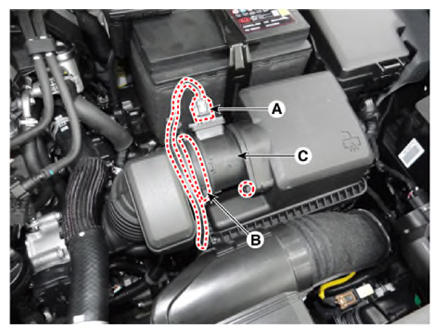

Disconnect the MAFS connector (A) and remove the mounting clamp (B).
Remove the installation bolts, and then remove the sensor (C) from the air cleaner.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
