Repair Procedures: Installation

1. Install in the reverse order of removal.

NOTE:

• Always use new gasket.
• When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

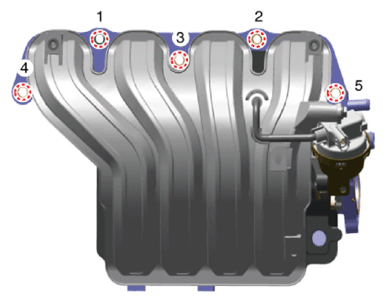

Fig 1: Intake Manifold Bolts Tightening Sequence

Courtesy of KIA MOTORS AMERICA, INC.
