Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10

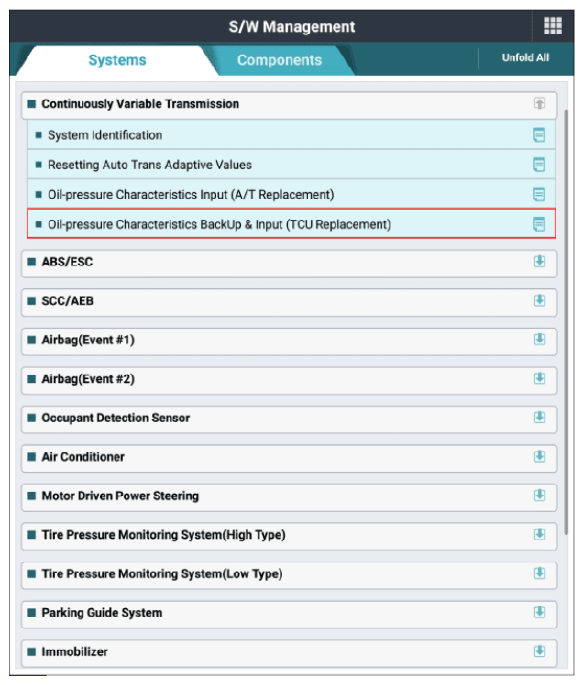

G13416855Courtesy of KIA MOTORS AMERICA, INC.

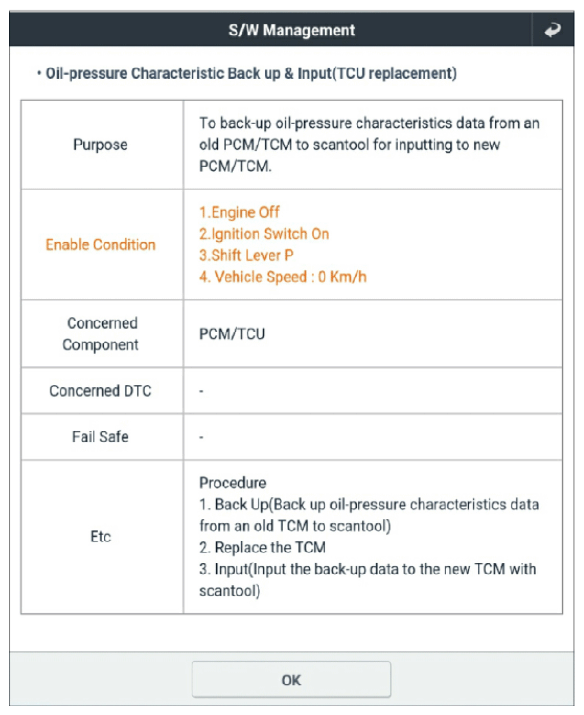

G13416856Courtesy of KIA MOTORS AMERICA, INC.

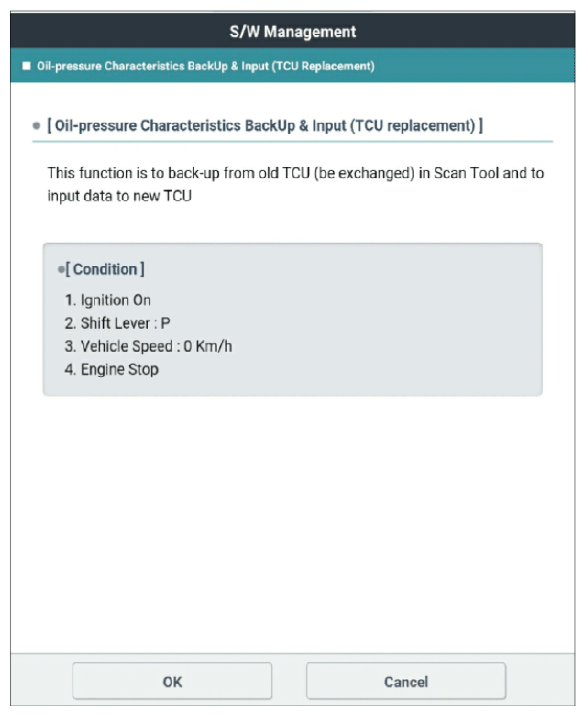

G13416857Courtesy of KIA MOTORS AMERICA, INC.

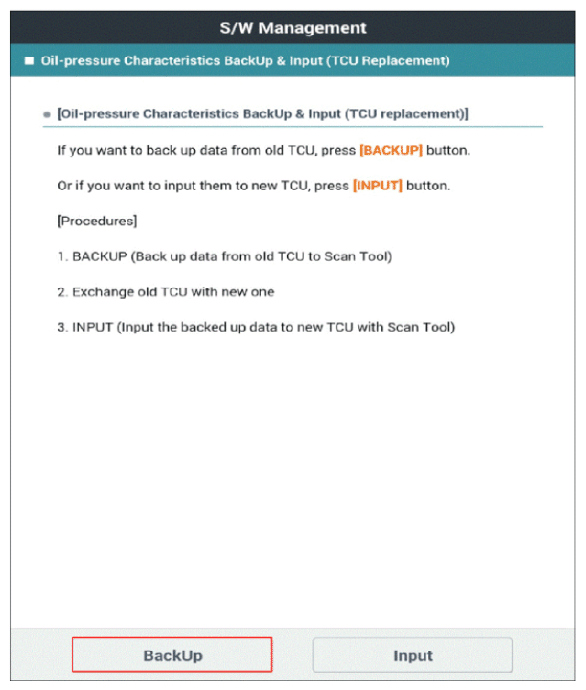

G13416858Courtesy of KIA MOTORS AMERICA, INC.

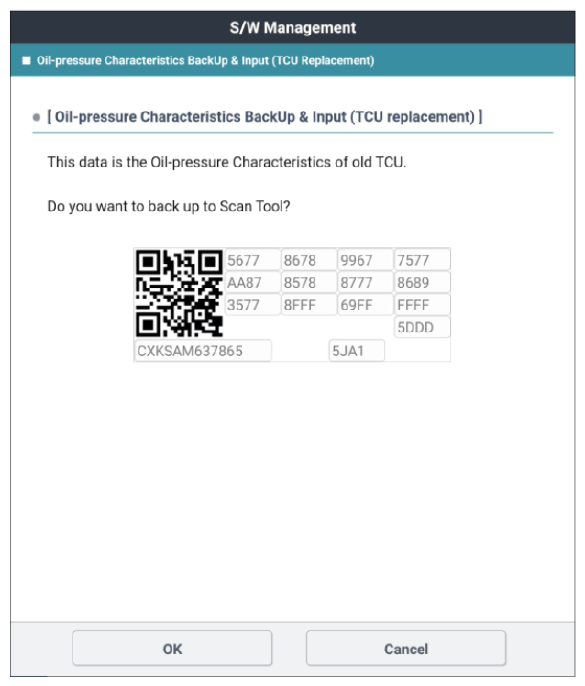

G13416859Courtesy of KIA MOTORS AMERICA, INC.

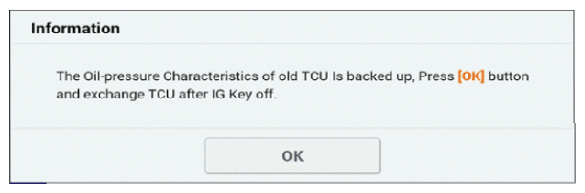

G13416860Courtesy of KIA MOTORS AMERICA, INC.

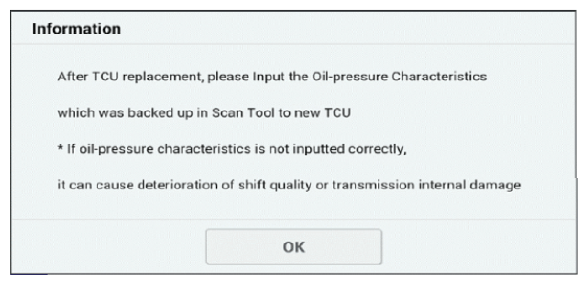

G13416861Courtesy of KIA MOTORS AMERICA, INC.

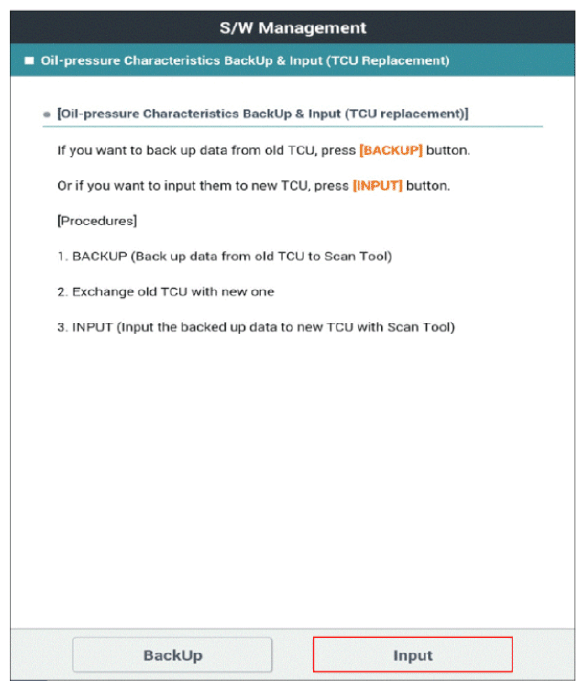

G13416862Courtesy of KIA MOTORS AMERICA, INC.

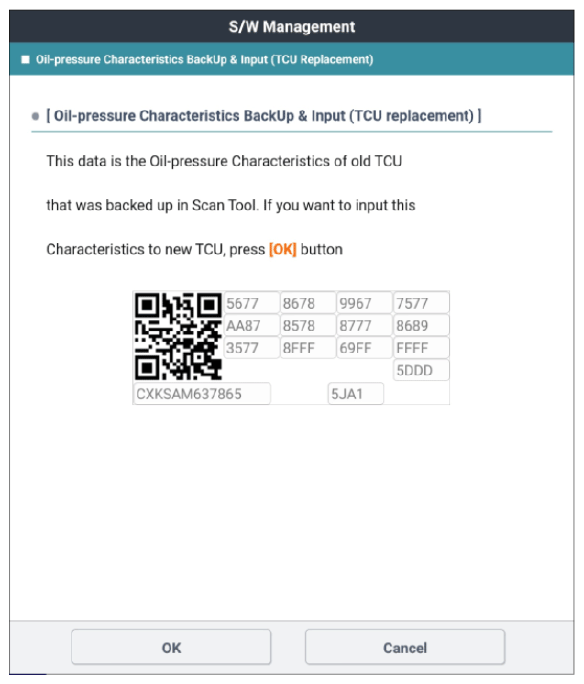

G13416863Courtesy of KIA MOTORS AMERICA, INC.

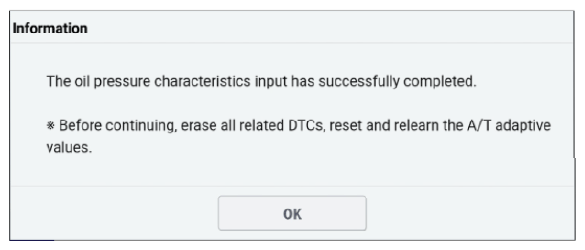

G13416864Courtesy of KIA MOTORS AMERICA, INC.
