Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10

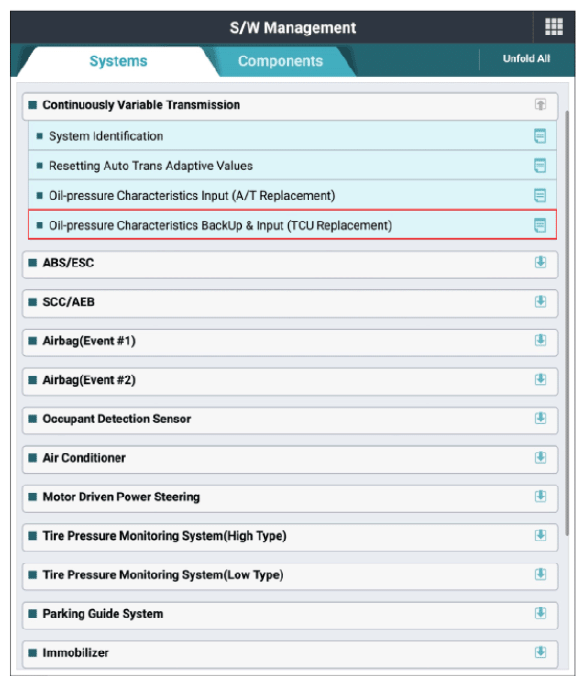

G13416867Courtesy of KIA MOTORS AMERICA, INC.

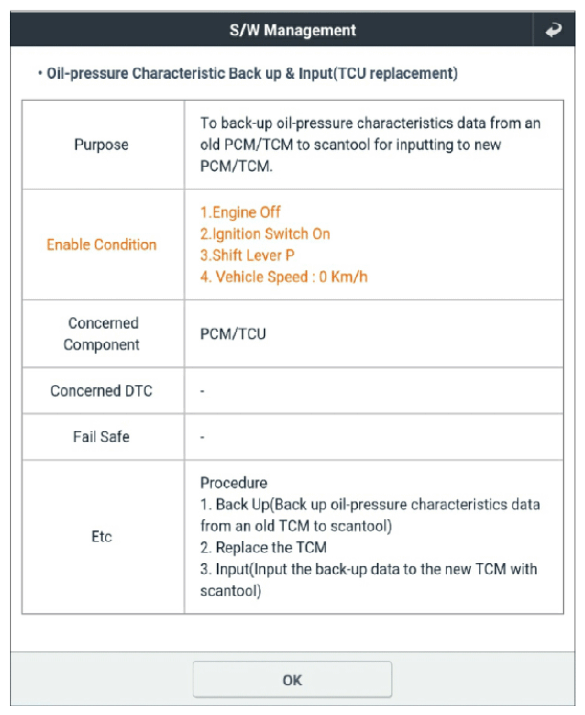

G13416868Courtesy of KIA MOTORS AMERICA, INC.

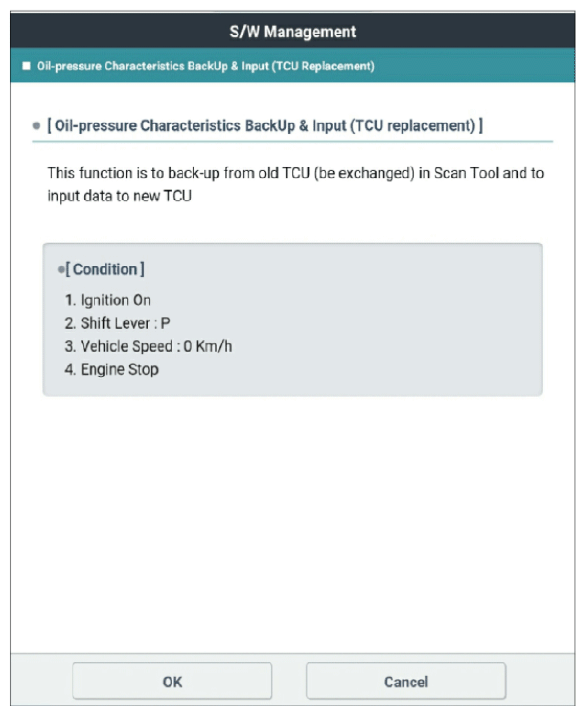

G13416869Courtesy of KIA MOTORS AMERICA, INC.

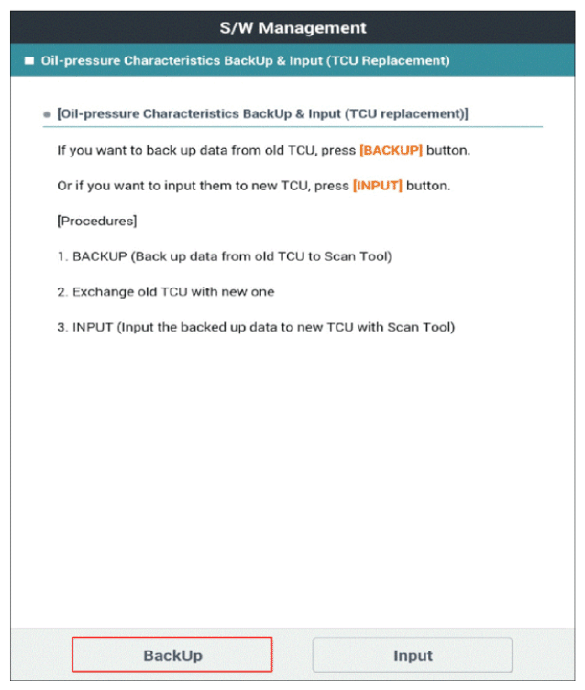

G13416870Courtesy of KIA MOTORS AMERICA, INC.

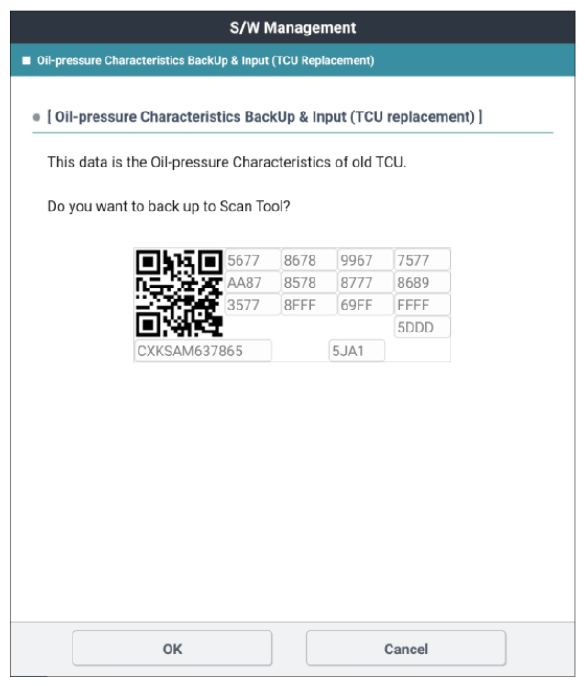

G13416871Courtesy of KIA MOTORS AMERICA, INC.

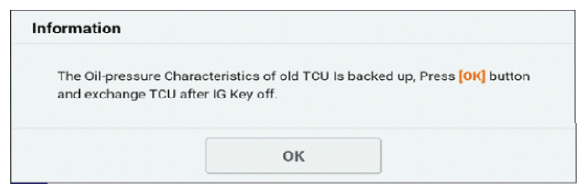

G13416872Courtesy of KIA MOTORS AMERICA, INC.

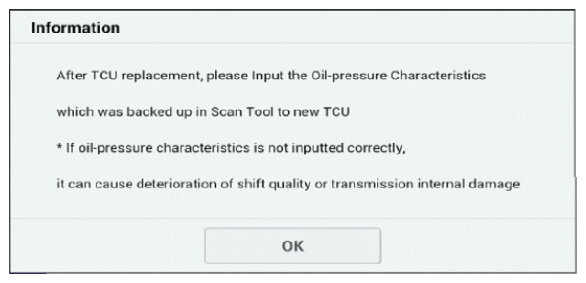

G13416873Courtesy of KIA MOTORS AMERICA, INC.

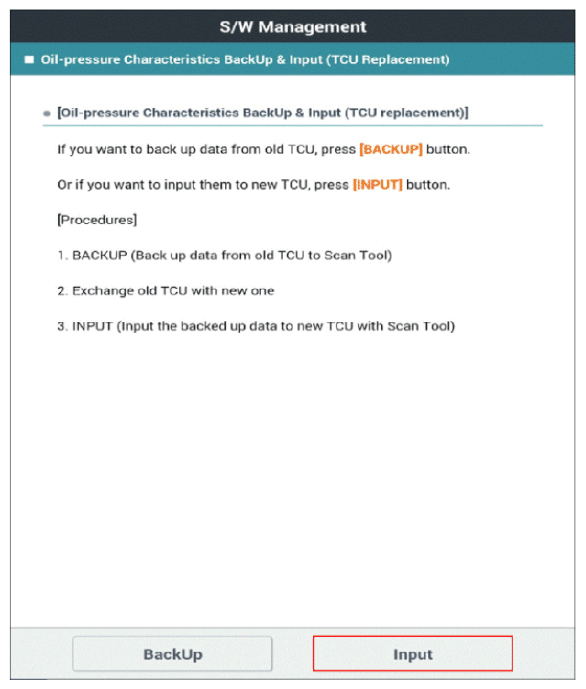

G13416874Courtesy of KIA MOTORS AMERICA, INC.

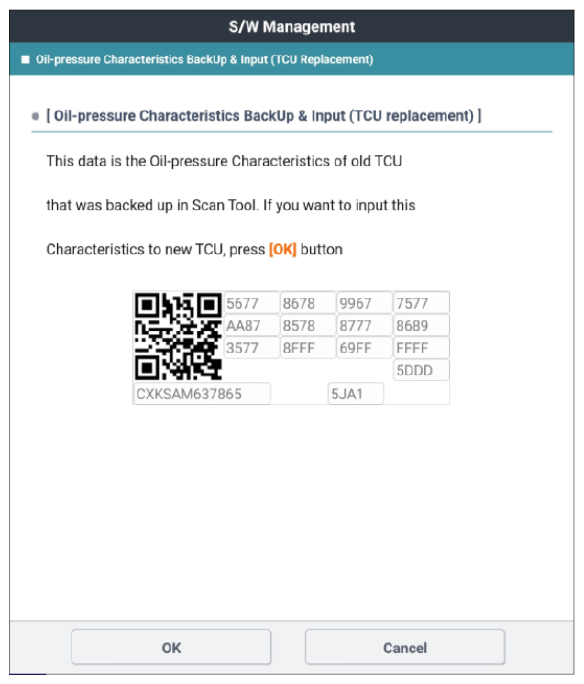

G13416875Courtesy of KIA MOTORS AMERICA, INC.

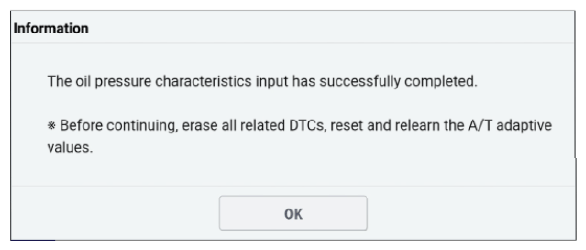

G13416876Courtesy of KIA MOTORS AMERICA, INC.
