Kia
›
2020
›
Sorento EX, 4WD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.3L
›
Components And Components Location
›

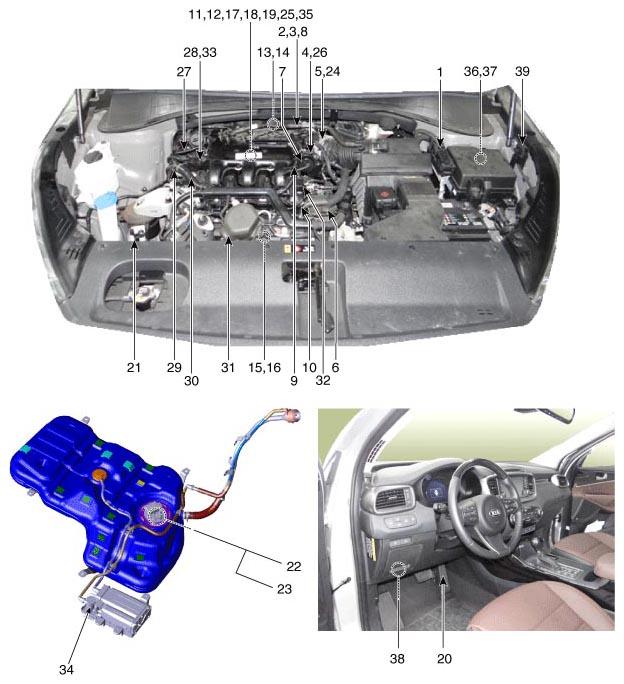

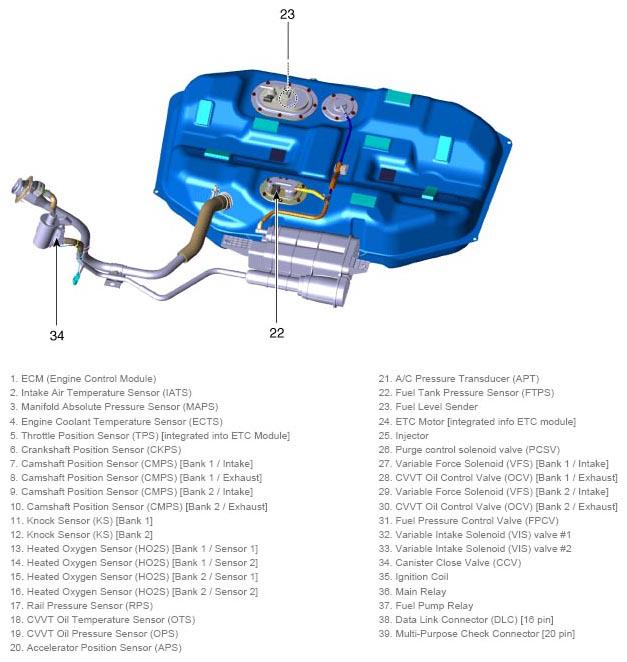

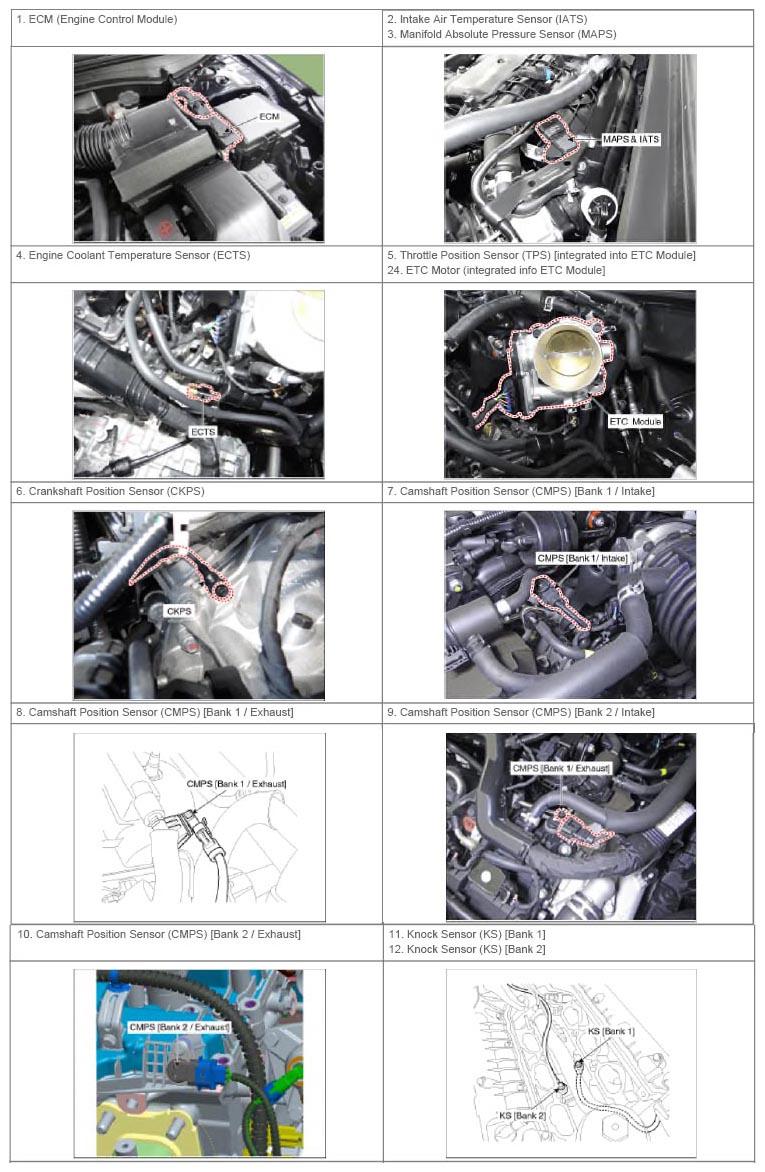

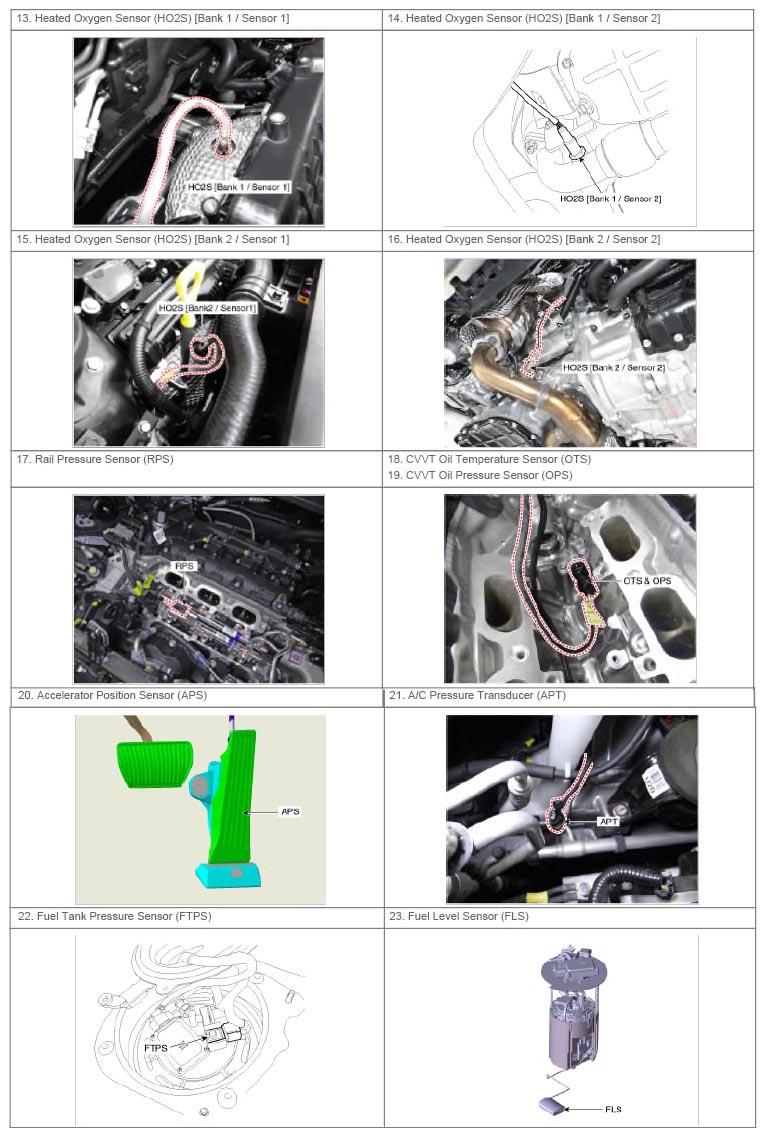

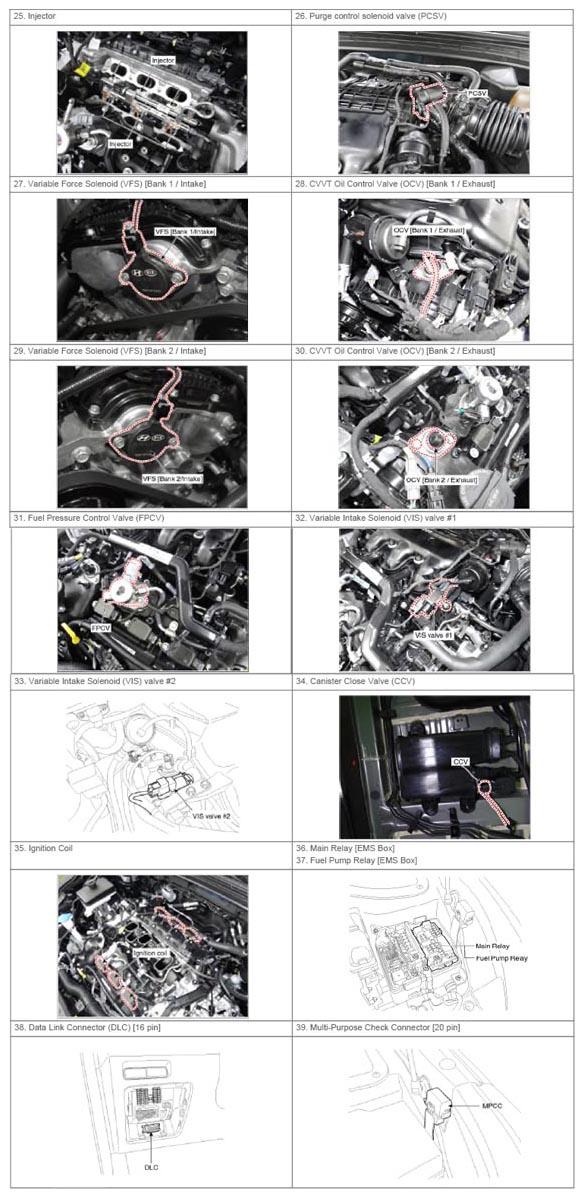

Components Location
Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
