[Driver Power Window Module]

G12884703Courtesy of KIA MOTORS AMERICA, INC.

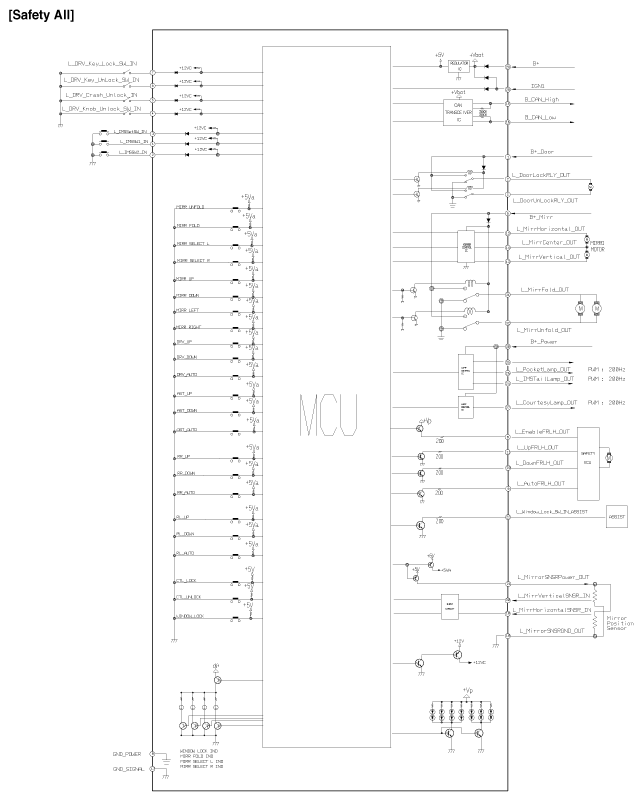

G12884704Courtesy of KIA MOTORS AMERICA, INC.

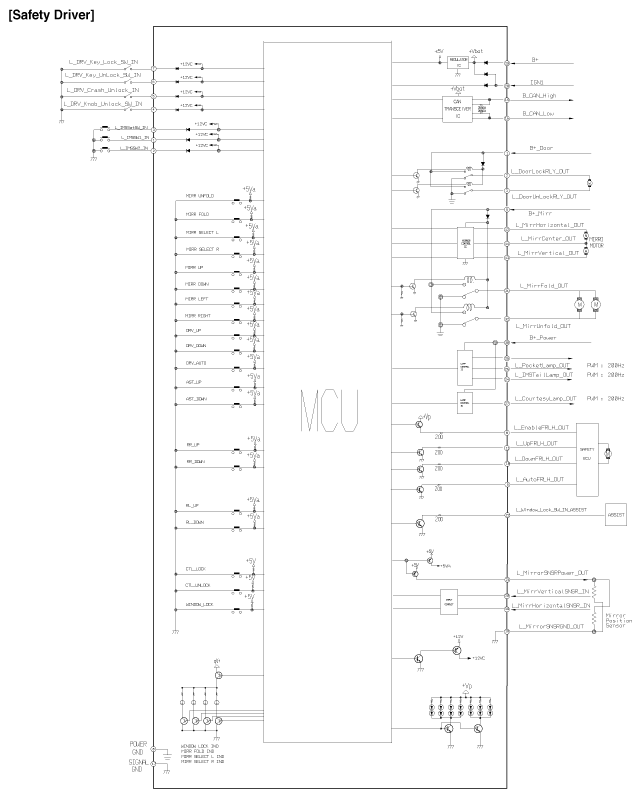

G12884705Courtesy of KIA MOTORS AMERICA, INC.

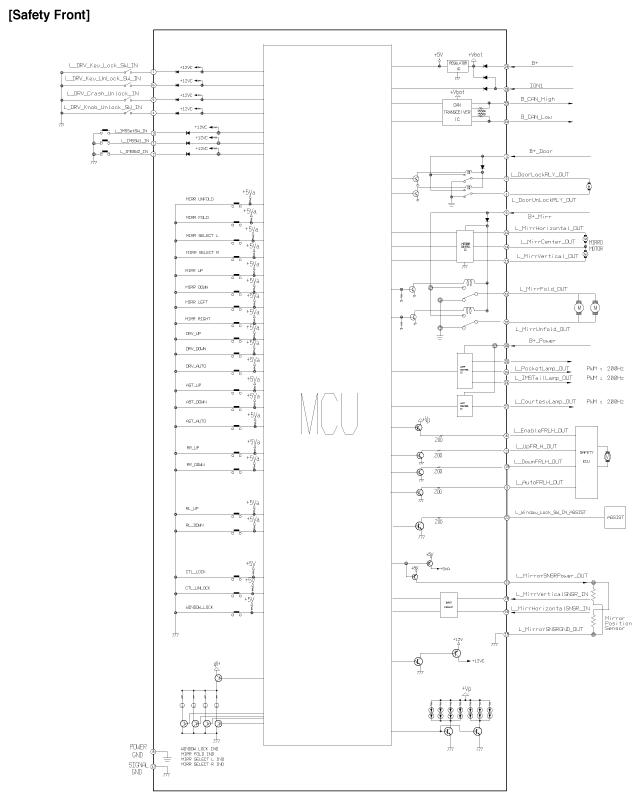

G12884706Courtesy of KIA MOTORS AMERICA, INC.
