Cluster module variant coding
WARNING: This page is about a different car, the 2019 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
- Verify vehicle options and have VIN code in hand.

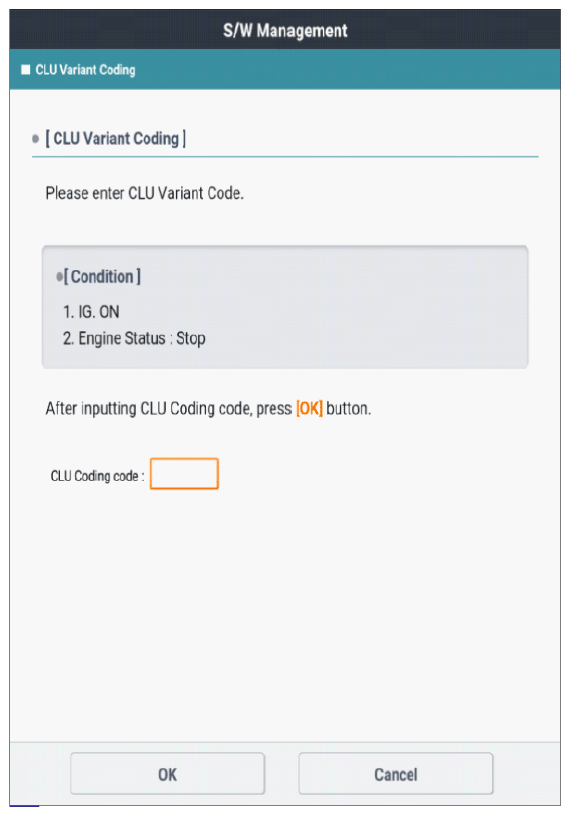

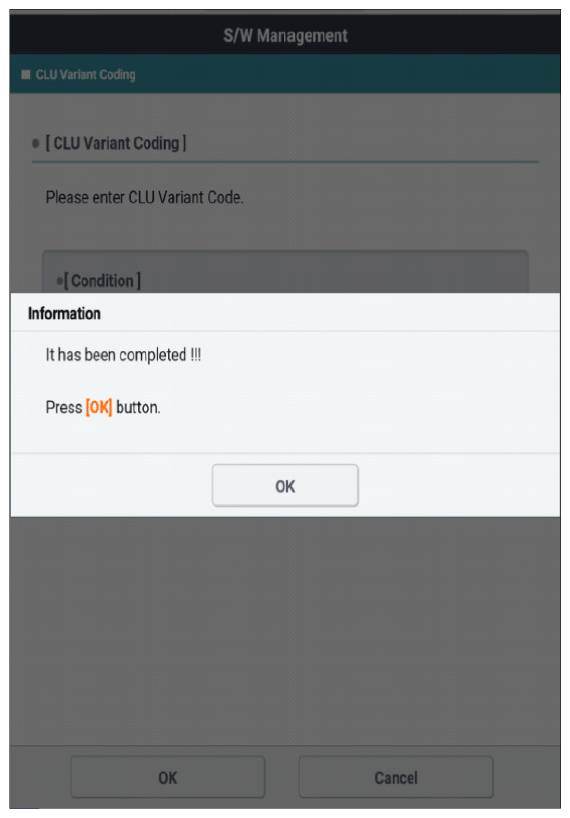

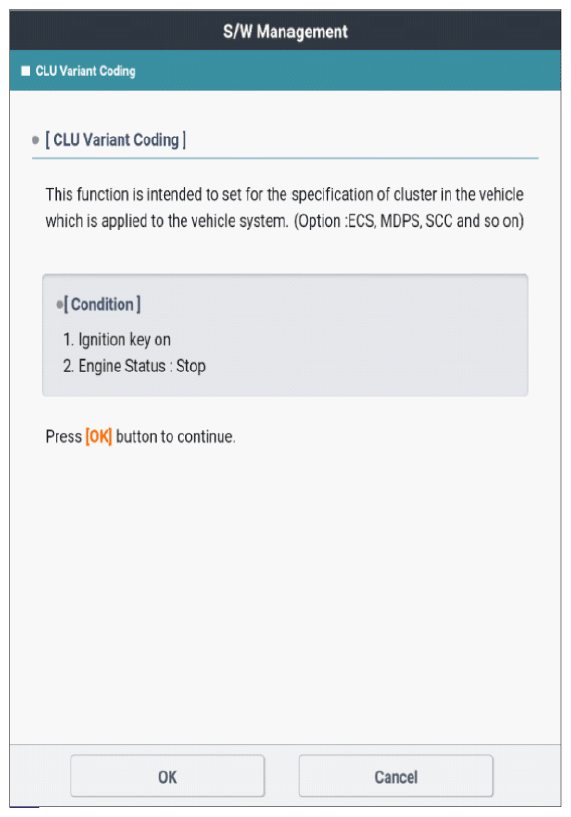

- Perform "CLU VARIANT CODING " in the "Vehicle S/W management" with KDS.
- Check for DTCs in the system.
- Is the DTCs stored in the system as a present?
YES
- Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "WIRING INSPECTION " procedure.
