[Halogen/Bi-Function Headlamp]
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

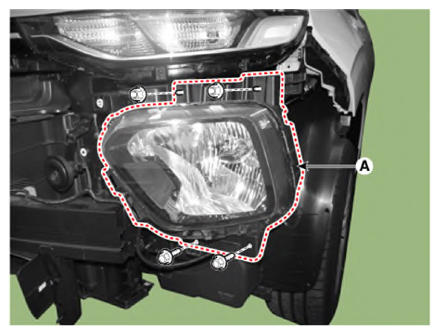

- Remove the front headlamp assembly (A) after loosening the mounting bolts and nuts.

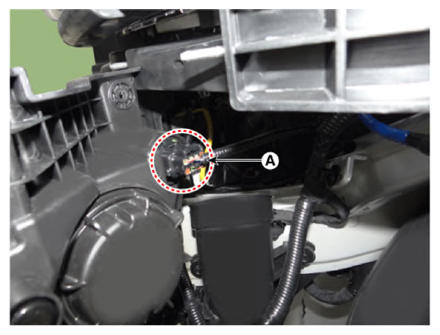

- Disconnect the connector (A) from the headlamp assembly.
