Front Brake Pads

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

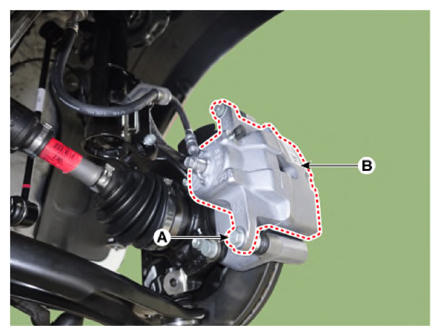

Loosen the guide rod bolt (A) and then pivot the caliper housing (B) up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

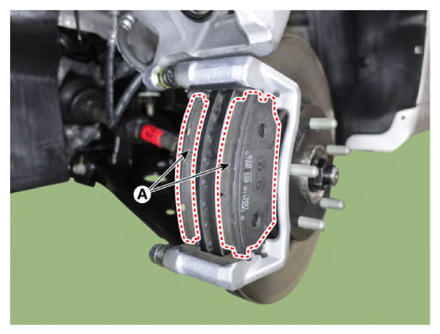

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

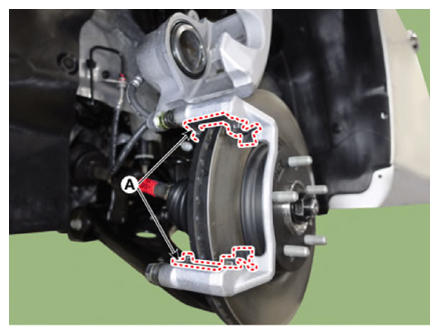

Remove the pad spring (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the pad spring (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
Install the brake pads (A) with a new one.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

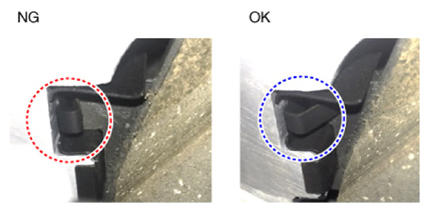

When installing pad, be sure to check if the pad spring retraction part is installed correctly.
- Do not assemble if the pad spring retraction part is pressed by pad back plate ear.
Courtesy of KIA MOTORS AMERICA, INC.
Use a SST (09581-2T100) when installing the brake caliper assembly.

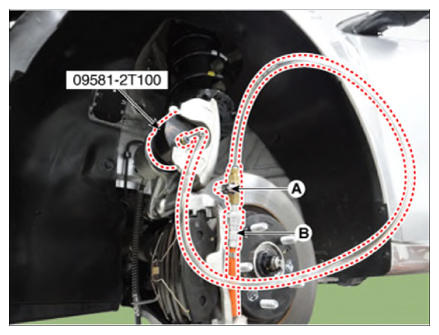

1. Connect an air hose (A) to the SST after confirming that the valve of the SST is surely closed.
2. Input the SST in the caliper and press the caliper piston while opening the valve of the SST slowly counter clock wise.
3. Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
Courtesy of KIA MOTORS AMERICA, INC.
Install the caliper housing (B) then tighten the guide rod bolt (A).
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
