Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the floor console side cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Disconnect the PTC heater connector (A).

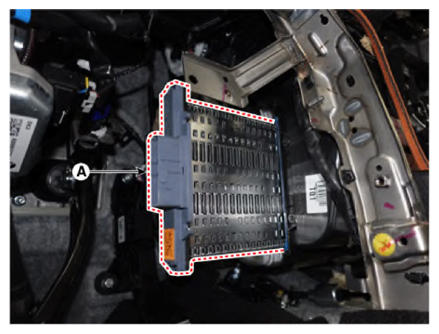

- Remove the PTC heater core (A) after loosening the PTC heater mounting screws.
- To install, reverse the removal procedure.
