Removal & Installation

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

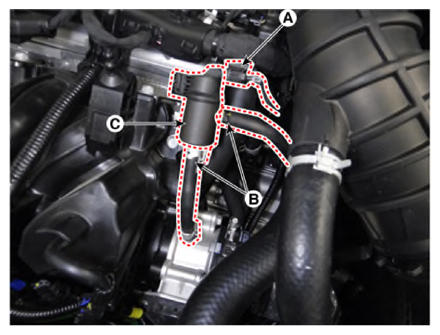

Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
Remove the purge control solenoid valve (C).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
Use care to keep foreign material out of the valve.
