Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

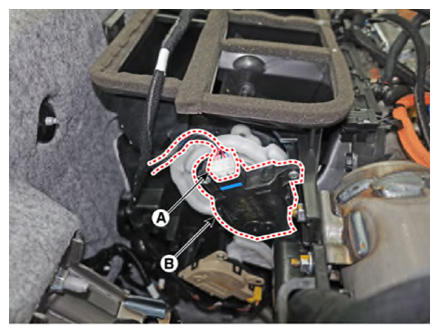

Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
