Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

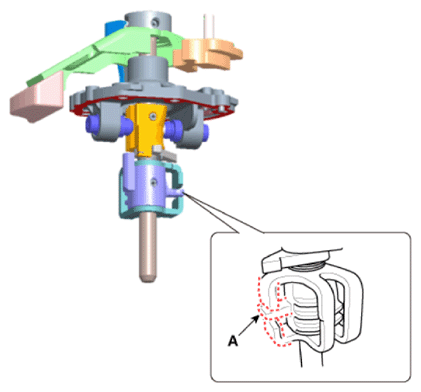

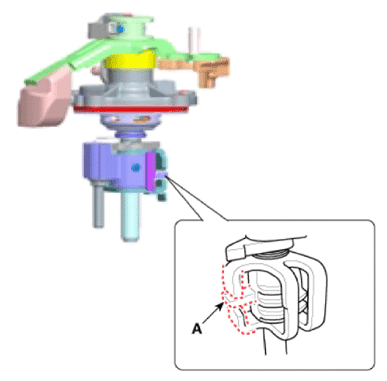

When installing, set control shaft lever to neutral position (A).

Courtesy of KIA MOTORS AMERICA, INC.

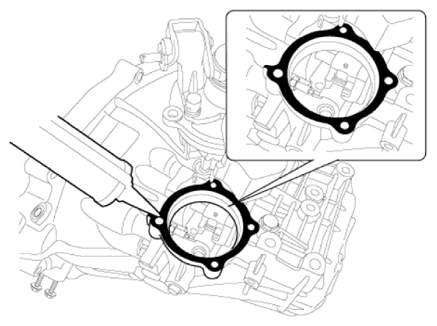

Apply the sealant to the contact surface of transaxle and control shaft.

Specified sealant : Anaerobic adhesive for flange

Courtesy of KIA MOTORS AMERICA, INC.
