Soul LX, Standard Trans
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Manual Transaxle Control System
›
Shift Lever
›
Components And Components Location
›
Components
Components And Components Location: Components

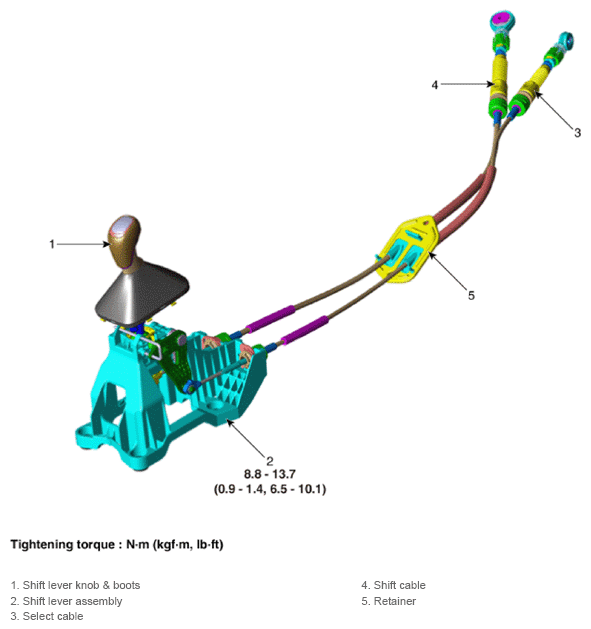

Fig 1: Shift Lever Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
