Repair Procedures: Disassembly

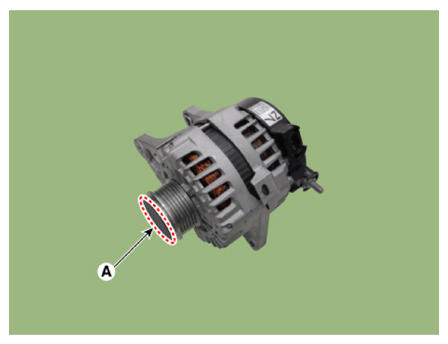

Remove the OAP cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

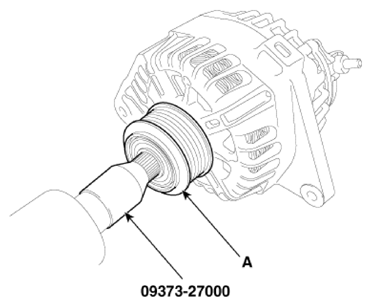

Using the SST (09373-27000), remove the OAP pulley (A).

Courtesy of KIA MOTORS AMERICA, INC.

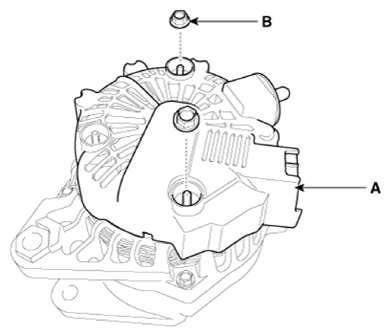

Remove the rear cover (A) after removing nuts (B).

Courtesy of KIA MOTORS AMERICA, INC.

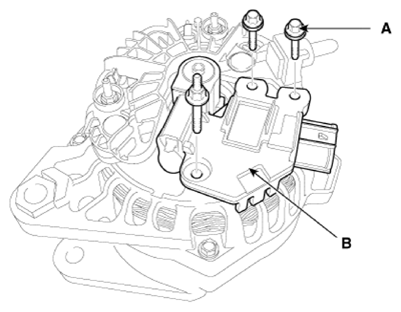

Remove the mounting bolts (A) and the regulator assembly (B).

Courtesy of KIA MOTORS AMERICA, INC.

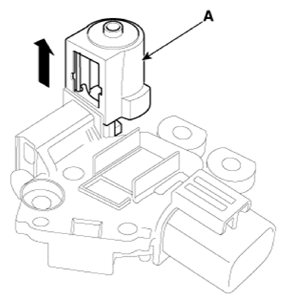

Remove the slip ring guide (A) after pulling it.

Courtesy of KIA MOTORS AMERICA, INC.
Unsolder the 3 stator leads (A).

Courtesy of KIA MOTORS AMERICA, INC.

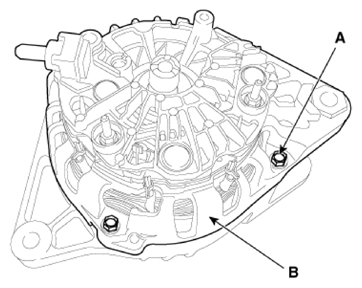

Remove the 4 through bolts (A).

Courtesy of KIA MOTORS AMERICA, INC.

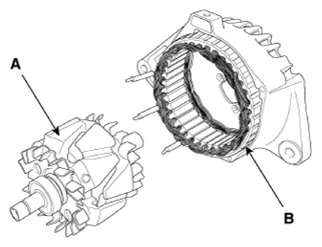

Disconnect the rotor (A) and housing (B).

Courtesy of KIA MOTORS AMERICA, INC.
