Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

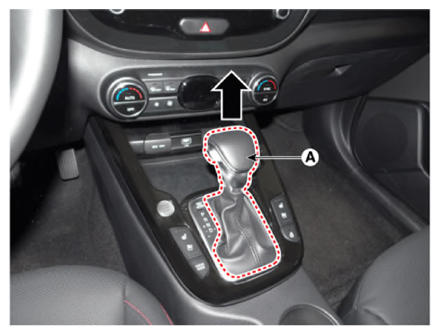

  2. Remove the knob (A) by pulling it in the direction of the arrow after separating the boots from the console upper cover.
    G13282419Courtesy of KIA MOTORS AMERICA, INC.

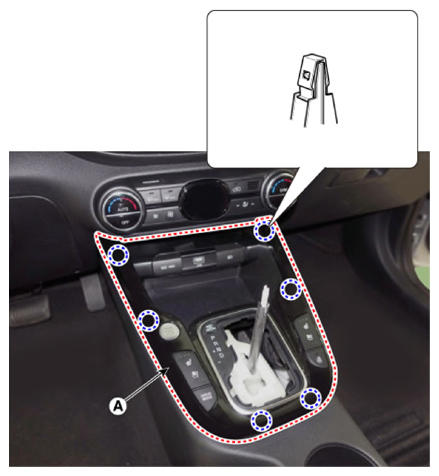

  3. Remove the console upper cover (A).
    G13282420Courtesy of KIA MOTORS AMERICA, INC.

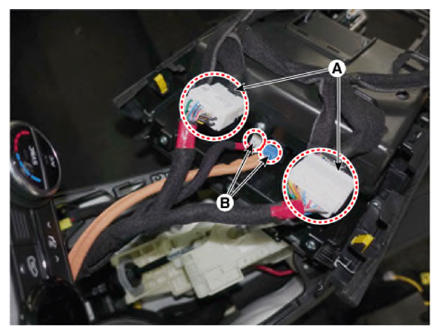

  4. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13282421Courtesy of KIA MOTORS AMERICA, INC.

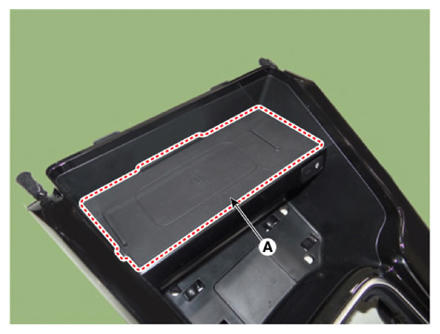

  5. Remove the wireless power charger pad (A).
    G13282422Courtesy of KIA MOTORS AMERICA, INC.

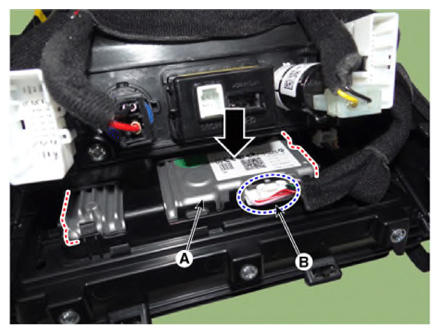

  6. Remove the wireless power charger (A) by pushing it in the direction arrow after disconnecting the connector (B).
G13282423Courtesy of KIA MOTORS AMERICA, INC.
