Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine room under cover.

    G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

    G 2.0 MPI NU(ATKINSON) (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  2. Remove the front wheel guard.

    (Refer to Body - "FRONT WHEEL GUARD ")

  3. Loosen the drive belt.

    G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "DRIVE BELT ")

    G 2.0 MPI NU(ATKINSON) (Refer to Engine Mechanical System - "DRIVE BELT ")

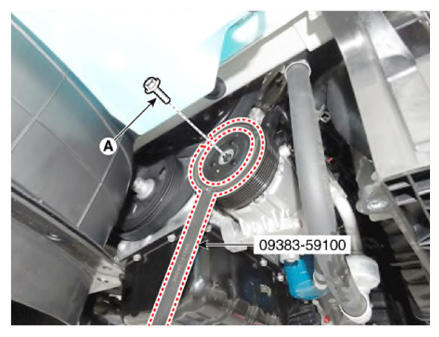

  4. Remove the clutch bolt (A) while holding the pulley with a clutch bolt remover (09383-59100).

    Tightening torque:

    10.0 - 15.0 N.m (1.02 - 1.53 kgf.m, 7.37 -11.0 lb.ft)

    G13282970Courtesy of KIA MOTORS AMERICA, INC.

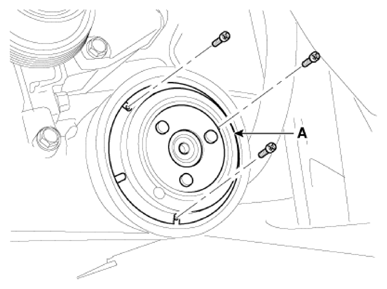

  5. Loosen the limiter bolts and then remove the limiter & hub assembly (A).
    G13282971Courtesy of KIA MOTORS AMERICA, INC.

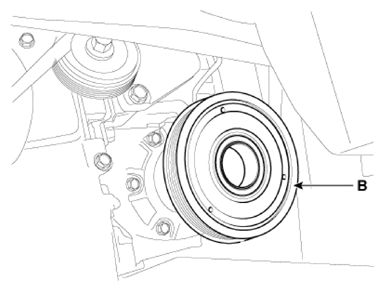

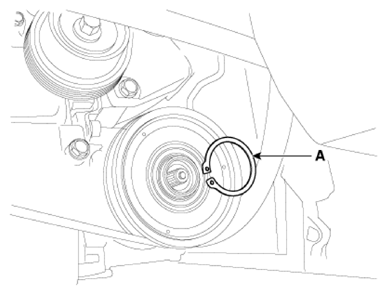

  6. Remove the pulley (B) after removing the snap ring (A) with a snap ring plier.
    G13282972Courtesy of KIA MOTORS AMERICA, INC.
    G13282973Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage the pulley and compressor during disassembly/reassembly.
    • Once the snap ring is removed, replace it with a new one.
  7. Reassemble in the reverse order of disassembly.
    NOTE:
    • Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
    • Install a new snap ring, and make sure they are fully seated in the groove.
    • Make sure that the pulley turns smoothly after reassembly.
