Non-Smart Key
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

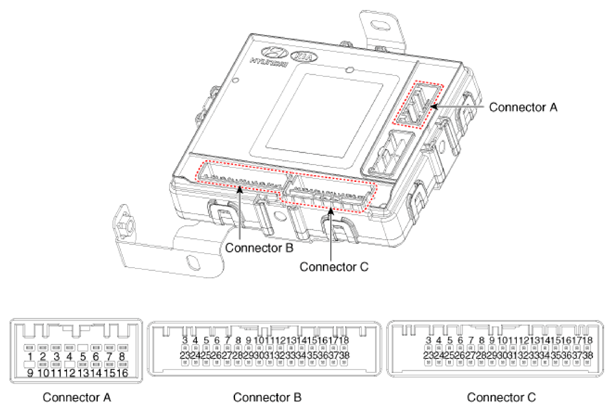

| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | - | - | - |
| 2 | Rear washer switch (Input) | - | - |
| 3 | Front washer switch (Input) | PDW-R power (Output) | AT solenoid (Output) |
| 4 | Power battery (+) | - | - |
| 5 | - | Sunroof status (Input) | Key in switch (Input) |
| 6 | Power ground | Light switch (Input) | KLINE immobilizer |
| 7 | - | Rear wiper switch (Input) | Start relay (Output) |
| 8 | - | Front wiper volume switch (Input) | Front wiper low back up switch (Input) |
| 9 | - | - | Key inter lock switch (Input) |
| 10 | - | Fog lamp switch (Input) | Wiper parking switch (Input) |
| 11 | ECU battery (+) | Front wiper switch (Input) | Brake switch (Input) |
| 12 | - | Headlamp high switch (Input) | - |
| 13 | - | ACC (Input) | - |
| 14 | ECU ground | IGN 2 (Input) | Assist seat belt indicator (Output) |
| 15 | - | - | LIN 1 (PDW) |
| 16 | - | PDW-R power (Input) | Front wiper low relay (Output) |
| 17 | - | Front wiper high relay (Output) | |
| 18 | Rear center seat belt indicator (Output) | PDW-F power (Output) | |
| 19 | - | - | |
| 20 | - | - | |
| 21 | - | - | |
| 22 | - | - | |
| 23 | Keyhole illumination (Output) | PDW option (Input) | |
| 24 | IGN 1 (Input) | Multifunction Switch ground (Input) | |
| 25 | Front heated nozzle (Output) | - | |
| 26 | - | Immobilizer antenna power (Output) | |
| 27 | PDW-R switch (Input) | Immobilizer antenna ground (Output) | |
| 28 | Rear right seat belt indicator (Output) | Outside mirror unfolding (Output) | |
| 29 | Rear left seat belt indicator (Output) | Outside mirror folding (Output) | |
| 30 | PDW-R switch indicator (Output) | - | |
| 31 | Auto light sensor ground (Output) | - | |
| 32 | Auto light sensor signal (Input) | Key solenoid (Output) | |
| 33 | Auto light sensor power (Output) | - | |
| 34 | LIN 3 (Rain sensor) | Rear wiper relay (Output) | |
| 35 | B-CAN (Low) | P-CAN (High) | |
| 36 | B-CAN (High) | P-CAN (Low) | |
| 37 | - | ||
| 38 | - | ||
| 39 | - | ||
| 40 | - | ||
