Removal And Installation
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal.
- Remove the crash pad center panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

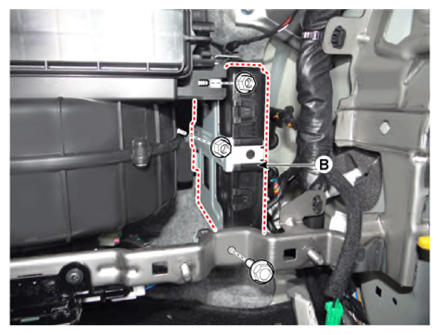

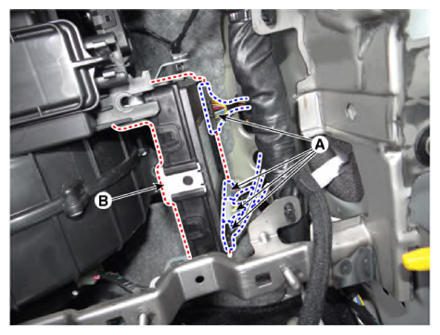

- Disconnect the connectors (A), then remove the IBU (B) after loosening the bolt and nuts.
- Install in the reverse order of removal.
