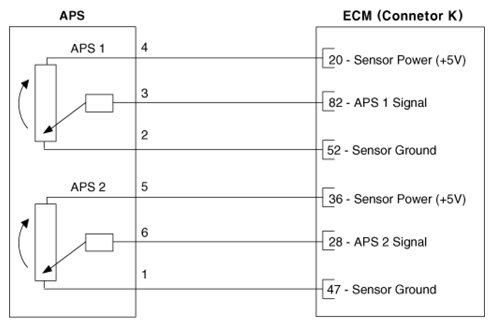

Home › Kia › 2020 › Stinger GT, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
