Hood Switch Inspection

Remove the front bumper assembly.
(Refer to " FRONT BUMPER ASSEMBLY ")

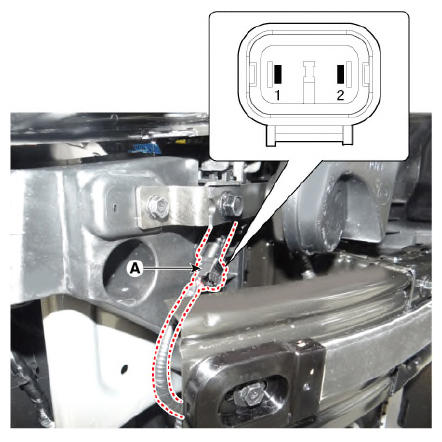

Disconnect the hood switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

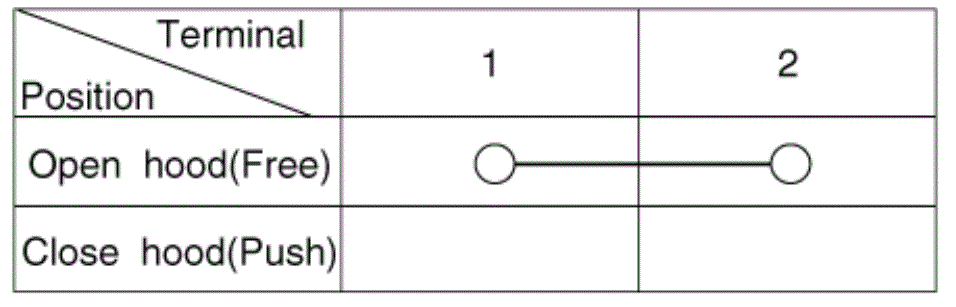

Check for continuity between the terminals and ground as shown below.
(Refer to " HOOD LATCH ")

Courtesy of KIA MOTORS AMERICA, INC.
