Occupant Classification System (OCS) Unit

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
Remove the front passenger seat assembly.
(Refer to " FRONT SEAT ASSEMBLY ")

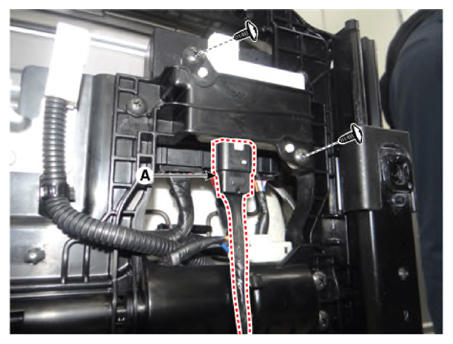

Disconnect the occupant classification system unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

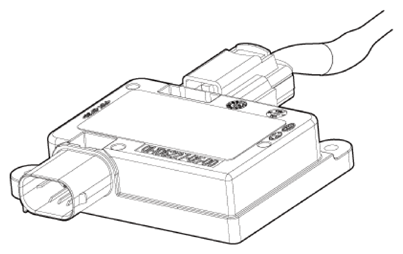

Remove the occupant classification system unit (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
