Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal and wait for at least thirty seconds before beginning to work.
  2. Remove the floor console assembly.

    (Refer to " FLOOR CONSOLE ASSEMBLY  ")

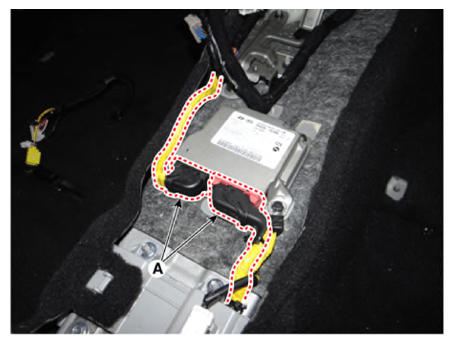

  3. Disconnect the Supplemental Restraint System Control Module (SRSCM) connector (A).
    G12791543Courtesy of KIA MOTORS AMERICA, INC.

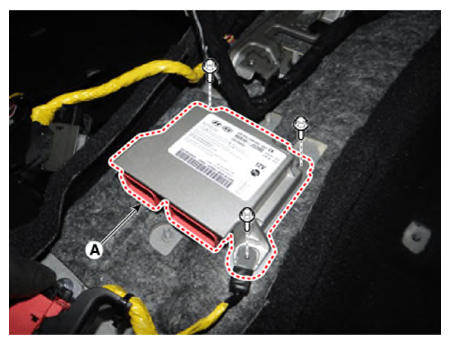

  4. Loosen the bolt and nuts and then remove the Supplemental Restraint System Control Module (SRSCM).
    CAUTION: Switch "OFF" the ignition when removing or installing SRSCM or other SRS components to avoid accidental airbag deployment.
    G12791544Courtesy of KIA MOTORS AMERICA, INC.
