Off-Line on KDS

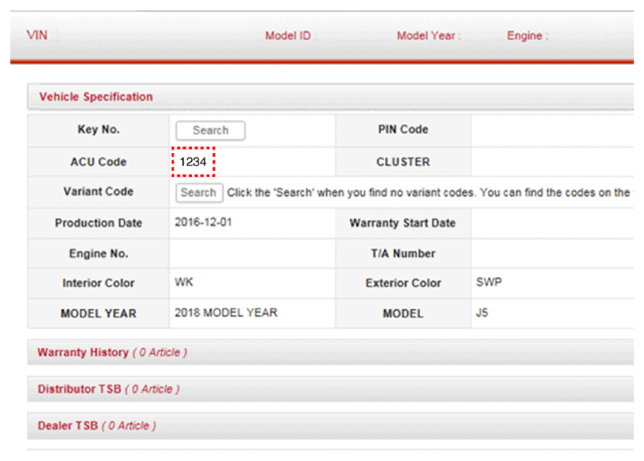

  1. Confirm the ACU variant coding code from the KGIS server after inputting the VIN to the KGIS sever.
    G13311101Courtesy of KIA MOTORS AMERICA, INC.
  2. Switch "OFF" ignition, and connect KDS.
  3. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  4. Select Variant coding mode.

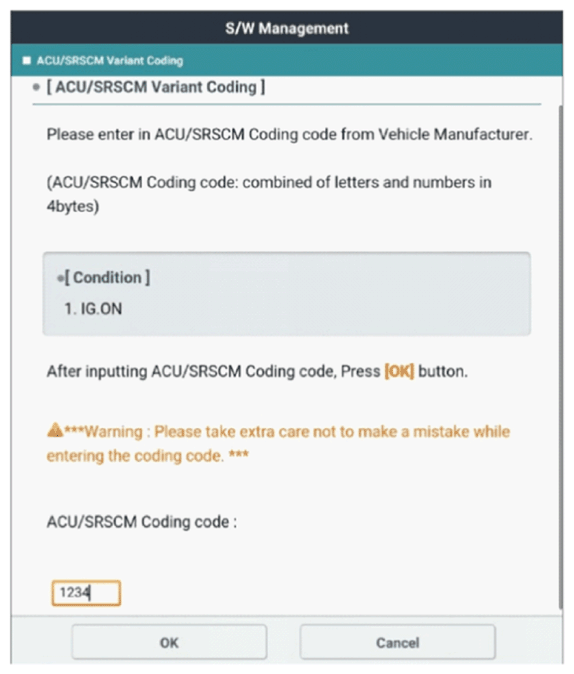

  5. Input the ACU coding code.
G13311102Courtesy of KIA MOTORS AMERICA, INC.
