Trunk Lock Module

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

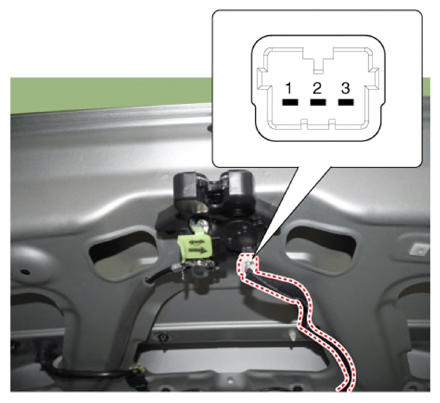

  2. Disconnect the connector from the trunk lid latch.
    G13306010Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
G13306011Courtesy of KIA MOTORS AMERICA, INC.
G13306012Courtesy of KIA MOTORS AMERICA, INC.
