Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

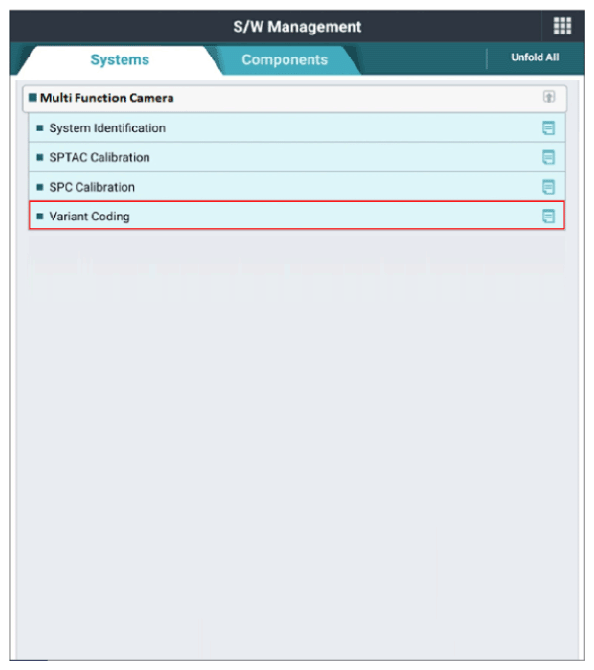

G13294464Courtesy of KIA MOTORS AMERICA, INC.

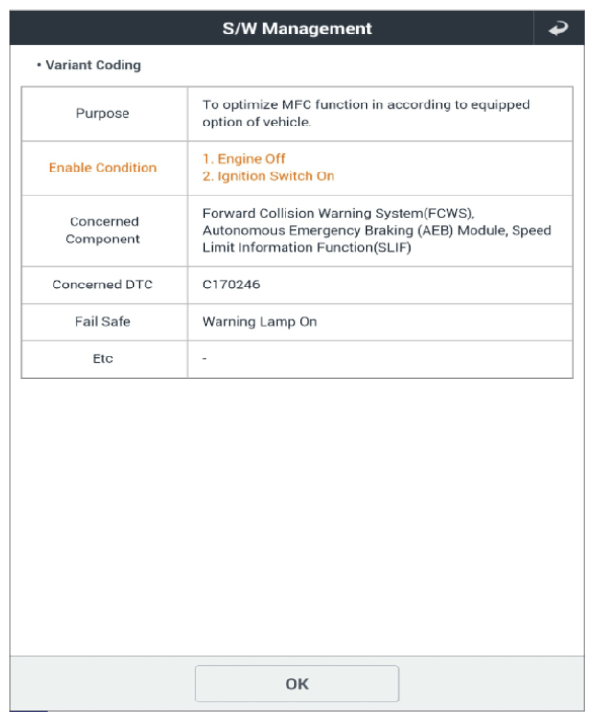

G13294465Courtesy of KIA MOTORS AMERICA, INC.

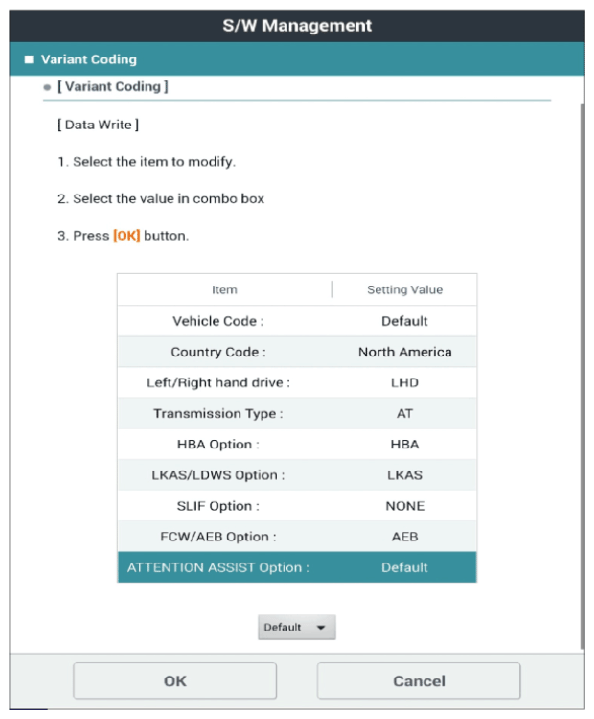

G13294466Courtesy of KIA MOTORS AMERICA, INC.
G13294467Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON" and engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 9
