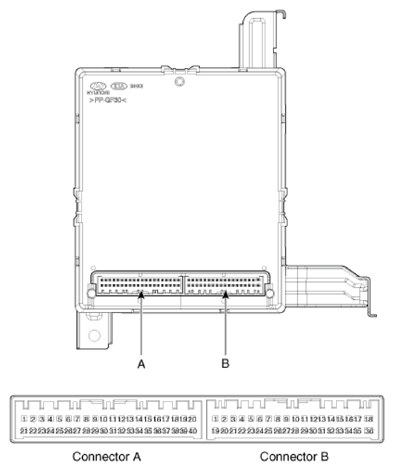

| 1 |
- |
Front washer switch_input |
| 2 |
- |
- |
| 3 |
- |
Key solenoid_output |
| 4 |
- |
Key in switch_output |
| 5 |
- |
Key interlock switch_output |
| 6 |
Rear center seat belt indicator_output |
wiper parking switch_input |
| 7 |
Rear left seat belt indicator_output |
Security indicator_output |
| 8 |
Rear right seat belt indicator_output |
Brake switch_input |
| 9 |
Assist seat belt indicator_output |
Haptic_output |
| 10 |
Head lamp switch High_input |
Front wiper volume switch_Input |
| 11 |
Outside mirror unfolding_output |
Keyhole illumination output |
| 12 |
Outside mirror folding_output |
- |
| 13 |
- |
Dedicated DRL |
| 14 |
PDW alarm_output |
PDWoption_input |
| 15 |
PDW-R power_output |
B-CAN_Low |
| 16 |
PDW-F power_output |
B-CAN_High |
| 17 |
PDWpower_input |
Power_ground |
| 18 |
- |
ECU_ground |
| 19 |
- |
- |
| 20 |
- |
- |
| 21 |
- |
- |
| 22 |
KLINE_immobilizer |
Start inhibitor relay_output |
| 23 |
- |
PDWswitch indicator_output |
| 24 |
- |
Front wiper switch_input |
| 25 |
Sunroof status_input |
|
| 26 |
PDWswitch_input |
Multifunction switch ground_input |
| 27 |
- |
Wiper power relay_output |
| 28 |
- |
Auto light sensor ground_output |
| 29 |
- |
Auto light sensor signal_input |
| 30 |
LIN1 (PDW) |
Auto light sensor power_output |
| 31 |
- |
- |
| 32 |
Light switch_input |
Front wiper high relay_output |
| 33 |
Fog lamp switch_input |
Front wiper low relay_output |
| 34 |
IGN 2_input |
Front wiper low back up switch_input |
| 35 |
IGN 1_input |
P-CAN_Low |
| 36 |
ACC_input |
P-CAN_High |
| 37 |
Power_battery (+) |
|
| 38 |
ECU_battery (+) |
|
| 39 |
Immobilizer antenna power_output |
|
| 40 |
Immobilizer antenna ground_output |
|
