Removal and Installation

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

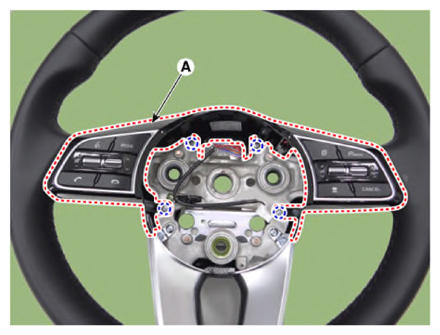

Remove the steering wheel bezel assembly (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

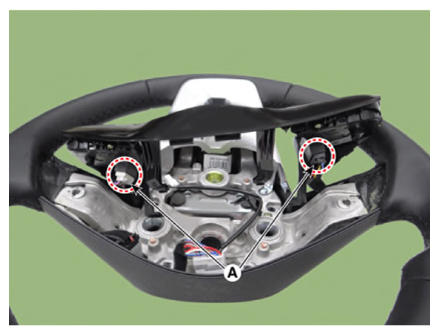

Disconnect the connector (A) from steering wheel remote control.

Courtesy of KIA MOTORS AMERICA, INC.

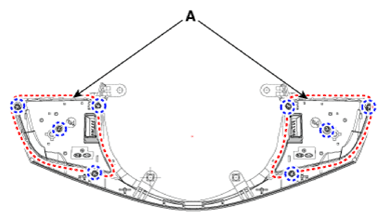

Remove the steering wheel remote control (A) from bezel after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
