Repair Procedures: Removal

Remove the front bumper.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

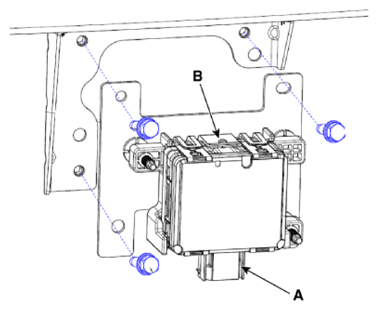

Disconnect the SCC & FCA radar connector (A).
Remove the SCC & FCA radar (B) after loosening the mounting nuts.

Courtesy of KIA MOTORS AMERICA, INC.
