Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

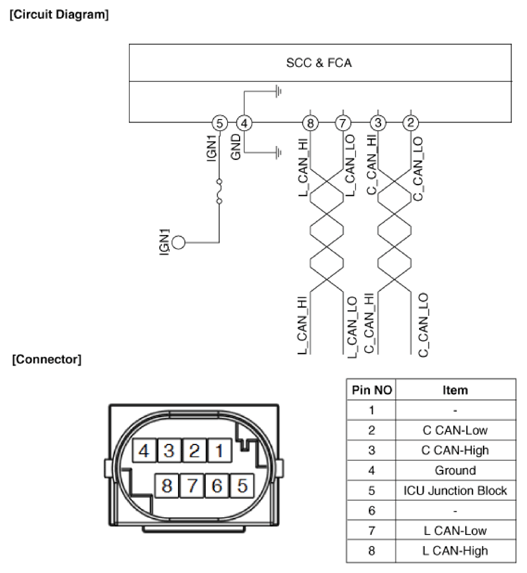

Fig 1: SCC Radar Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
