Repair Procedures: Inspection

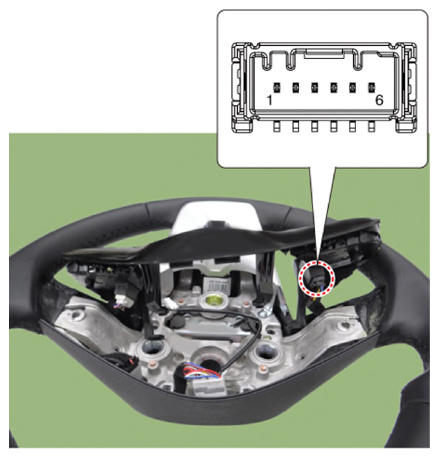

  1. Check for resistance between terminals in each switch position (LH).
    G13305772Courtesy of KIA MOTORS AMERICA, INC.
    RESISTANCE REFERENCE (AUDIO + BLUETOOTH + VOICE)

    Switch Connector terminal Resistance (±3%)
    SEEK Up 1-6 430 Ω
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 kΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    END 18.91 kΩ
    SEND 40.91 kΩ

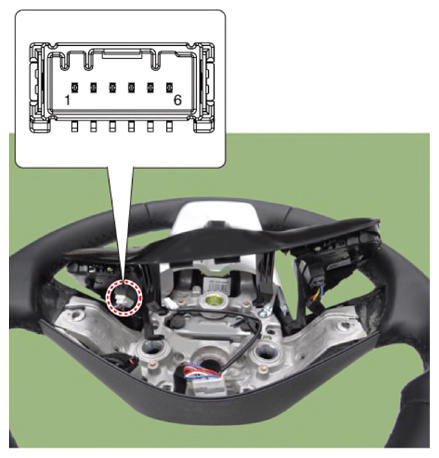

  2. Check for resistance between terminals in each switch position (RH).
    G13305773Courtesy of KIA MOTORS AMERICA, INC.
    RESISTANCE REFERENCE (CRUISE)

    Switch Connector terminal Resistance (±3%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    Cruise & Speed Limit ON/OFF 2.13 kΩ
    SCC (Following distance control) 3.63 kΩ
    RESISTANCE REFERENCE (TRIP)

    Switch Connector terminal Resistance (±3%)
    Group 1 - 6 390 Ω
    Trip Up 610 Ω
    Trip Down 910 Ω
    Trip ON/Reset 1.38 kΩ
