Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

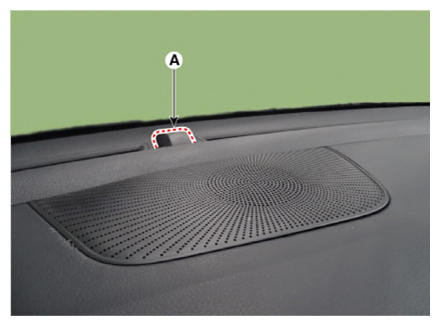

  2. Remove the auto light sensor (A) from the main crash pad.
    G13305579Courtesy of KIA MOTORS AMERICA, INC.

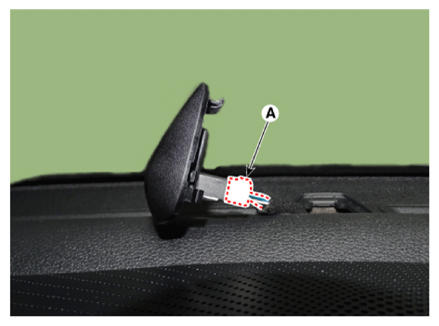

  3. Disconnect the connector (A) from the auto light sensor.
    G13305580Courtesy of KIA MOTORS AMERICA, INC.
