Repair Procedures: Inspection

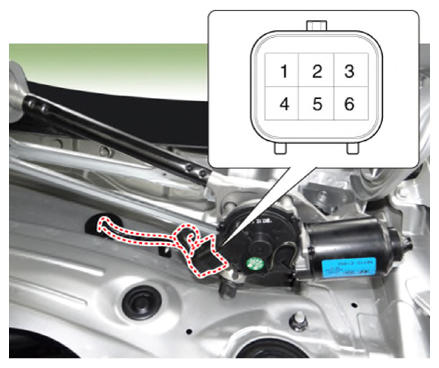

  1. Remove the connector from the wiper motor.
    G13306344Courtesy of KIA MOTORS AMERICA, INC.
    No. Description
    1 -
    2 Battery
    3 Wiper motor (Parking)
    4 Wiper motor (High)
    5 Ground
    6 Wiper motor (Low)
  2. Attach the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.
    G13306345Courtesy of KIA MOTORS AMERICA, INC.
    G13306346Courtesy of KIA MOTORS AMERICA, INC.
