Multifunction Switch Inspection

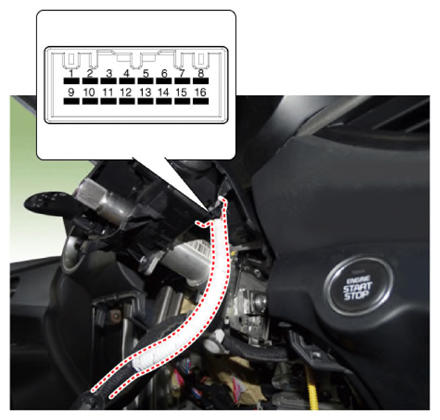

Check for continuity between the terminals in each switch position as shown below.

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Wiper switch	MIST	1-9	330
	OFF		∞
	Intermittent (AUTO)		800
	LOW		1, 800
	HIGH		5, 700
Wiper intermittent volume	Volume 1	7-9	330
	Volume 2		690
	Volume 3		1, 310
	Volume 4		2, 610
	Volume 5		7, 310
