Rear Door Lock Module
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Remove the rear door module.
(Refer to Body - "REAR DOOR MODULE ")

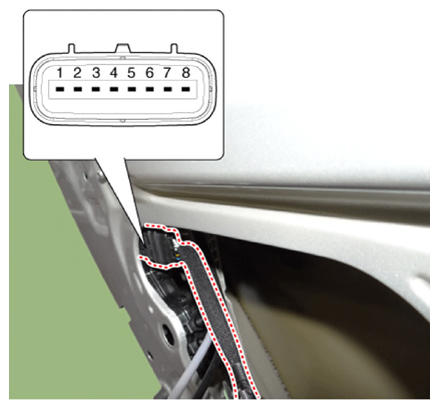

- Disconnect the connector from the door lock actuator

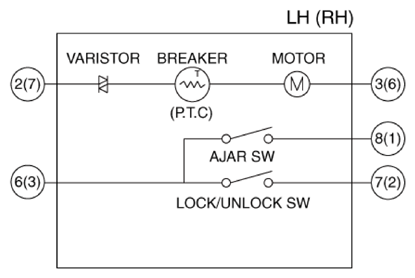

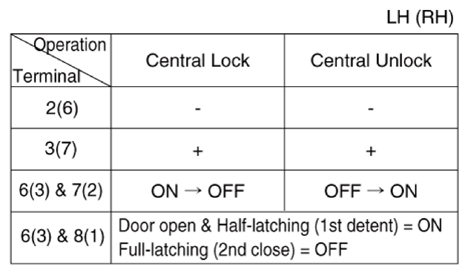

No. Description Left Right 1 - Ajar switch 2 Motor COM Lock/Unlock switch 3 Motor Switch COM 4 - - 5 - - 6 Switch COM Motor 7 Lock/Unlock switch Motor COM 8 Ajar switch - - Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
