Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

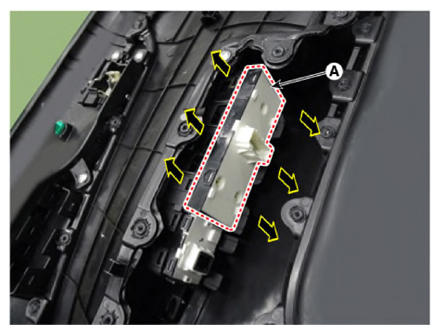

  3. Remove the front door power window switch assembly (A) after disengaging the mounting holders.
    G13306137Courtesy of KIA MOTORS AMERICA, INC.
