FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

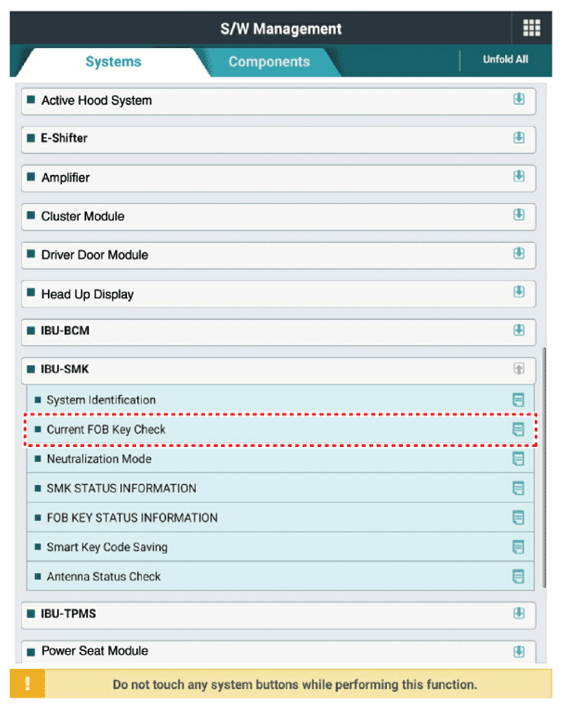

    G13306260Courtesy of KIA MOTORS AMERICA, INC.

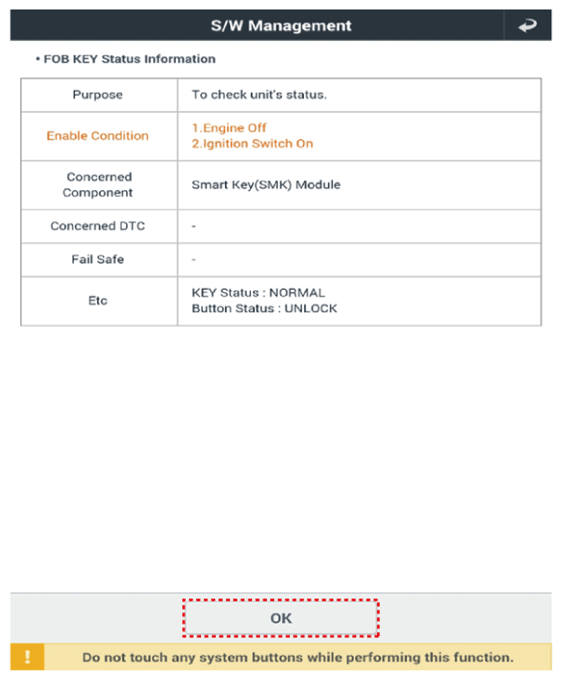

    G13306261Courtesy of KIA MOTORS AMERICA, INC.

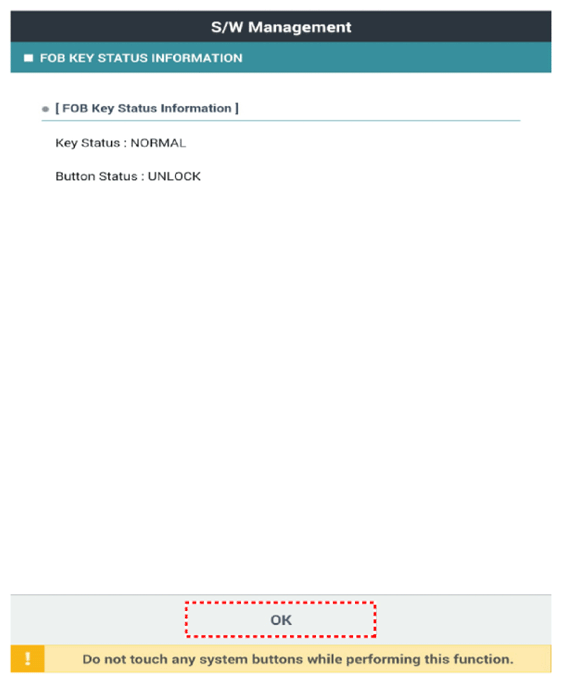

    G13306262Courtesy of KIA MOTORS AMERICA, INC.
