Repair Procedures: Removal: Buzzer
- Disconnect the negative battery terminal.
- Remove the under cover.
Nu 2.0 MPI (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")
Gamma 1.6 MPI (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

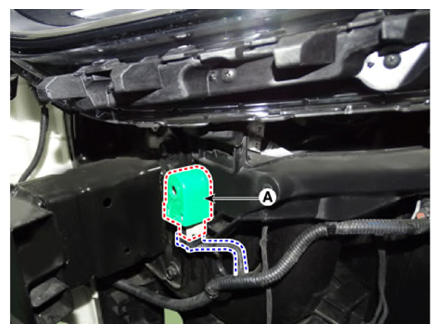

- Remove the buzzer (A) after disconnecting the connector.
