Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the front pillar trim.

To remove the front pillar trim, the fastener remover (A) below must be used.

Courtesy of KIA MOTORS AMERICA, INC.

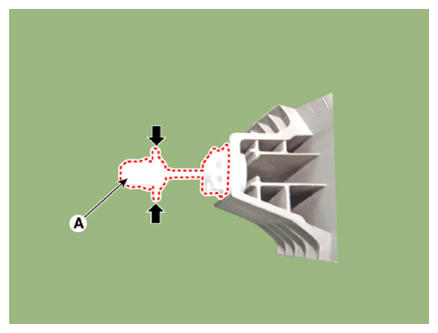

After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.

NOTE: Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.

Courtesy of KIA MOTORS AMERICA, INC.

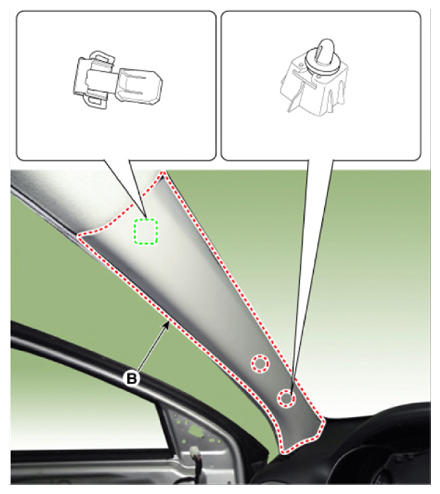

Courtesy of KIA MOTORS AMERICA, INC.

To install, reverse the removal procedure.

Information

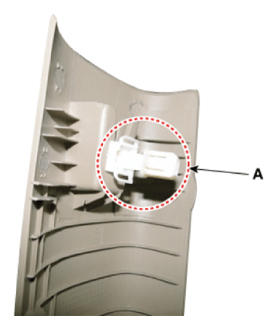

Be sure to replace the existing clips (A) with new ones when removing or replacing the front pillar trim.

Courtesy of KIA MOTORS AMERICA, INC.
