Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear pillar trim.

To remove the rear pillar trim, the fastener remover (A) below must be used.

Courtesy of KIA MOTORS AMERICA, INC.

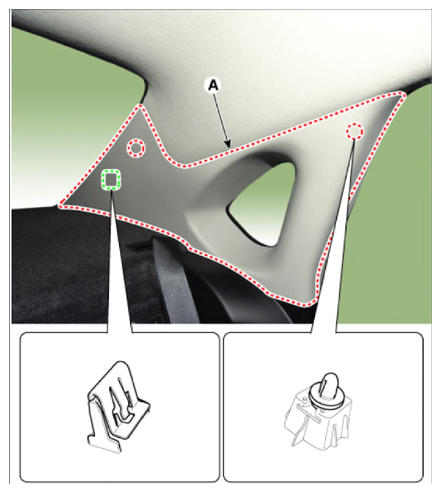

Remove the rear pillar trim (A).
NOTE: Be sure to replace the existing clips (B) with new ones when removing or replacing the rear pillar trim.

Courtesy of KIA MOTORS AMERICA, INC.

To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
