Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

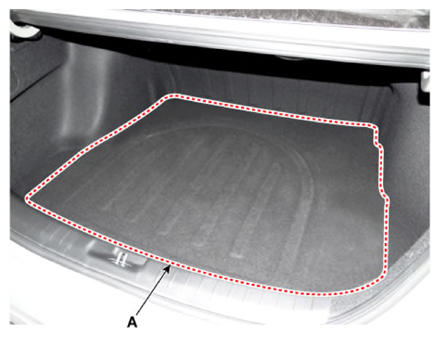

Remove the luggage board (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the luggage center tray trim.

Courtesy of KIA MOTORS AMERICA, INC.

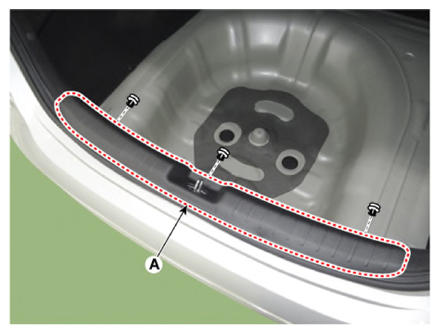

Loosen the mounting clips and remove the rear transverse trim (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information

Replace any damaged clips (or pin - type retainers).
