FixVault
Home
›
Kia
›
2021
›
Forte EX
›
Repair and Diagnosis
›
Body & Frame
›
Ignition Switch/Steering Lock
›
Button Engine Start System
›
Start-Stop Button
›

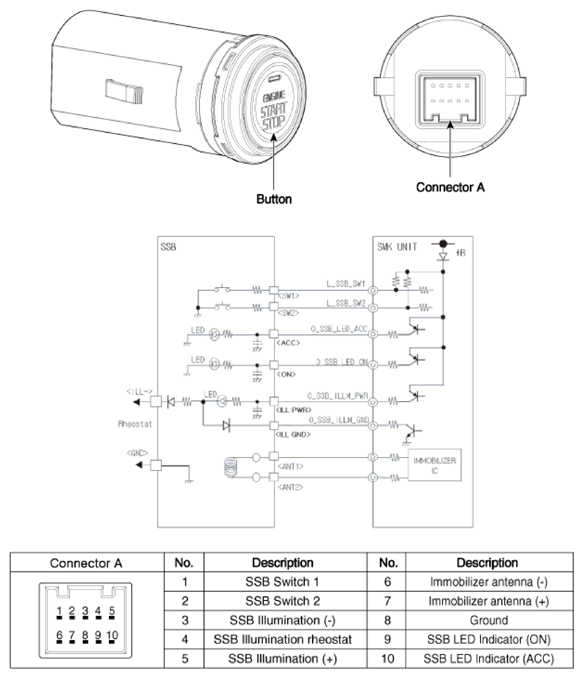

Schematic Diagrams
›
Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
