Home › Kia › 2021 › Forte EX › Repair and Diagnosis › Body & Frame › Seats › Seat Electrical › Power Seat Control Switch › Repair Procedures › Inspection

Repair Procedures: Inspection

  1. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

  2. When the battery power is supplied to the power seat control switch connector, check the motor for smooth operation.

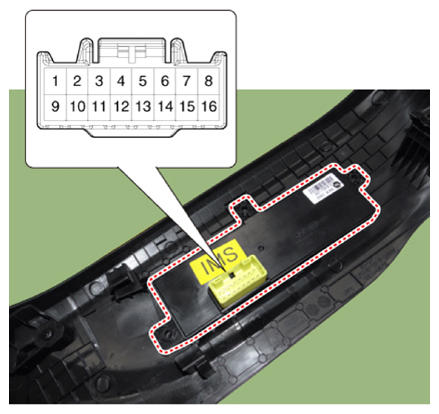

    G13306228Courtesy of KIA MOTORS AMERICA, INC.

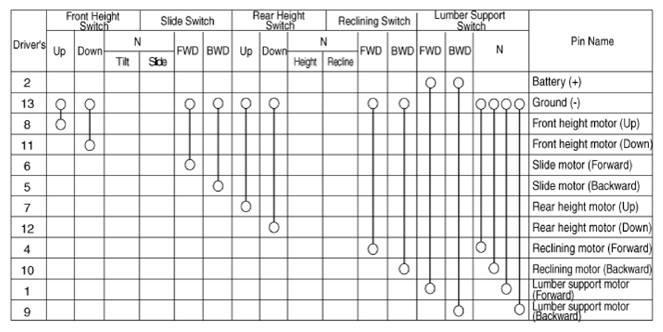

    G13306229Courtesy of KIA MOTORS AMERICA, INC.
