Repair Procedures: Removal

  1. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

  2. Remove the knob (A) from the power seat control switch.
    G13306230Courtesy of KIA MOTORS AMERICA, INC.

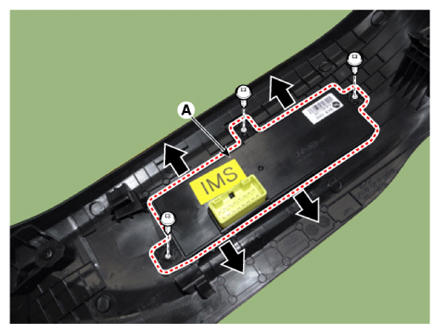

  3. Remove the power seat control switch (A) after loosening the screws.
    G13306231Courtesy of KIA MOTORS AMERICA, INC.
