ABS Control

  1. Normal Braking without ABS
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Open Close OFF
    G13305002Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  2. Decrease Mode
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Open ON (Motor speed control)
    G13305003Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  3. Hold Mode
      Inlet valve (IV) Outlet valve (OV) Return pump
    Operation Close Close ON (Motor speed control)
    G13305004Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: IV: Inlet Valve
    OV: Outlet Valve
    RL: Rear left wheel
    FR: Front right wheel
    FL: Front left wheel
    RR: Rear right wheel
    RP: Return pump
  4. Increase Mode
  Inlet valve (IV) Outlet valve (OV) Return pump
Operation Open Close ON (Motor speed control)

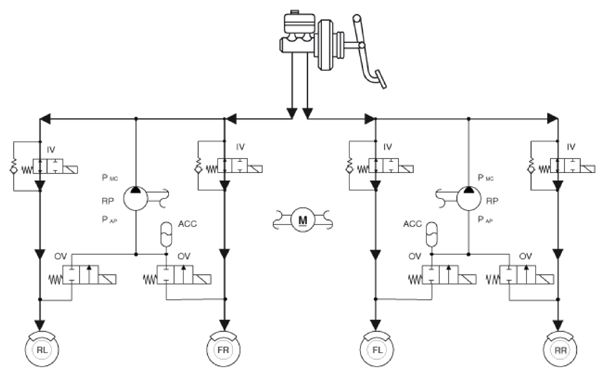

G13305005Courtesy of KIA MOTORS AMERICA, INC.
NOTE: IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump
