Circuit Inspection

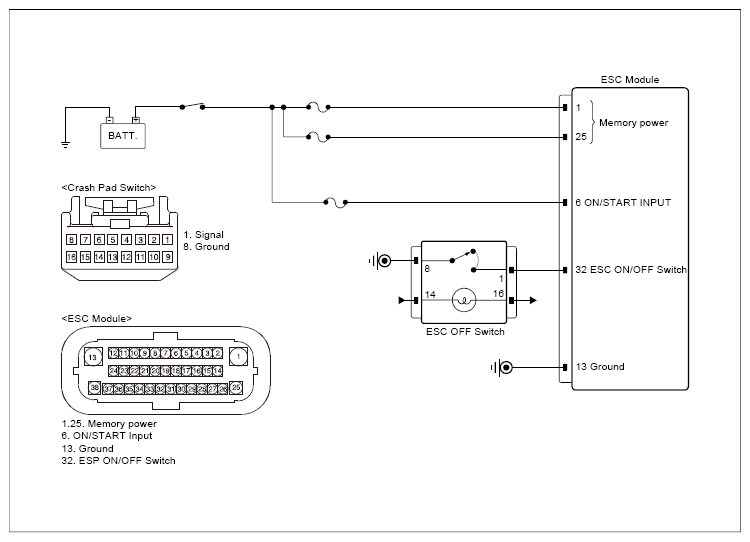

G13301577

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ESC On/Off Switch Connector	1 (signal)	ESC module connector	32 (signal)	Approx. below 1Ω
	ESC On/Off Switch Connector	1 (signal)	Chassis ground	-	∞ (infinite)Ω
	ESC On/Off Switch Connector	8 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
