Repair Procedures: Removal

  1. Remove the front drive shaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the trans axle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

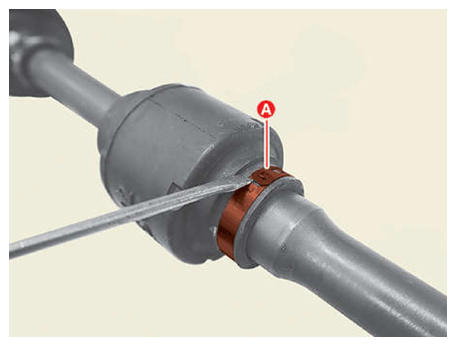

  3. Remove the dynamic damper band (A) using driver (-).
    G13304359Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

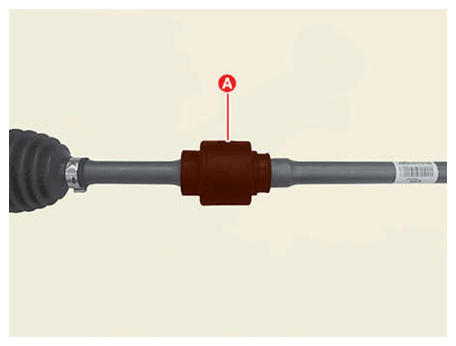

  4. Remove the dynamic damper (A).
G13304360Courtesy of KIA MOTORS AMERICA, INC.
