Testing and Repairing
- Do not use wires or harnesses with broken insulation.
Replace them or repair them by wrapping the break with electrical tape.
- After installing parts, make sure that no wires are pinched under them.
- When using electrical test equipment, follow the manufacturer's instructions and those described in this repair information.
- If possible, insert the remover tool from the wire side (except waterproof connector).

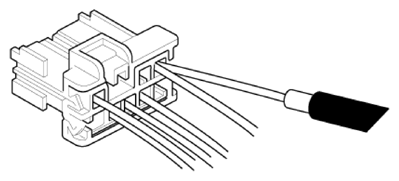

- Use a probe with a tapered tip.
Refer to the user's guide in the wiring repair kit (Pub No.: TRK 015.)
